PA24-27 | Electric Actuator | 24V | Non Spring Return | 27 In-Lb | Bray

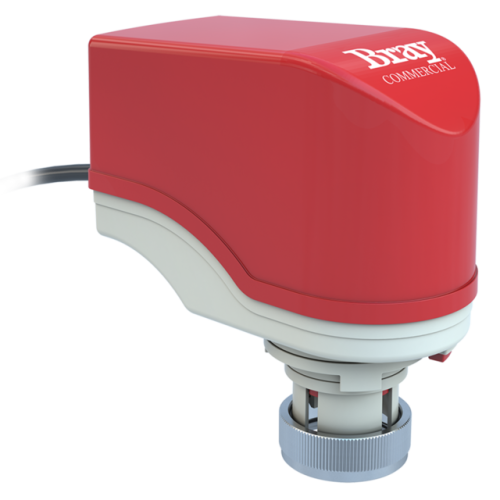

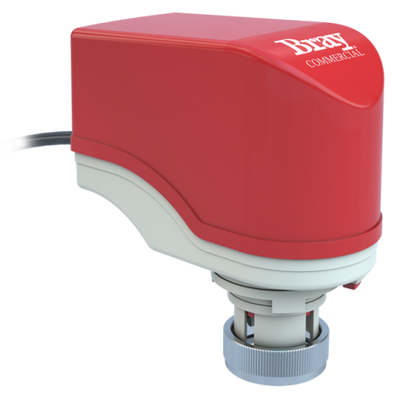

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PA24-27
Documents and manuals
Bray PA24-27 Documents
Overview
Details for PA24-27
Electric Actuator | 24V | Non Spring Return | 27 In-Lb
Description:
Bray PA24-27 Actuator Features:
- 27 In-Lb.
- 24 VAC / VDC.
- Non-failsafe.
- On/Off and floating.
- Auto shutoff for end of travel.
- On/Off and floating.
- Auto shutoff for end of travel.
- IP54 enclosure.
- Manual override.
The PA(M) series is a line of linear motor actuators to be used primarily on Bray PIC Valves utilized in Building Automation Systems. These actuators are available with a multitude of options for On/Off/Floating or Modulating with or without electronic Failsafe. These actuators automatically calibrate to the stroke of the valve as soon as power is applied and are field selectable direct or reverse acting.
A simple, reliable, versatile solution for your Bray Commercial Simple Set pressure Independent control valve!
- Actuator Power:24V
- Return Position:Non-Spring Return
Specifications
- Product
- PA24-27
- Actuator Control Signal
- Floating | On/Off
- Actuator Action
- Non-Fail Safe
- Actuator Power Supply
- 24 VAC
- Area Classification
- IP54 | NEMA 3R
- Torque Imperial
- 27
- Actuator Stroke Time
- 120 Seconds
- Conduit Connection
- None - 3 Wire 18 AWG Cable 1 Meter Long
- Weight Lbs
- 0.9
