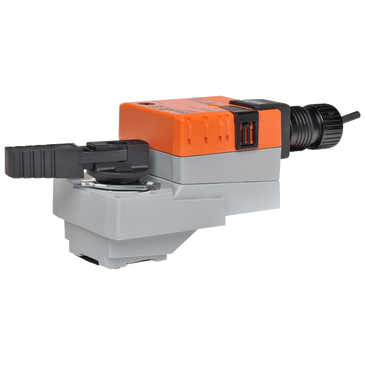

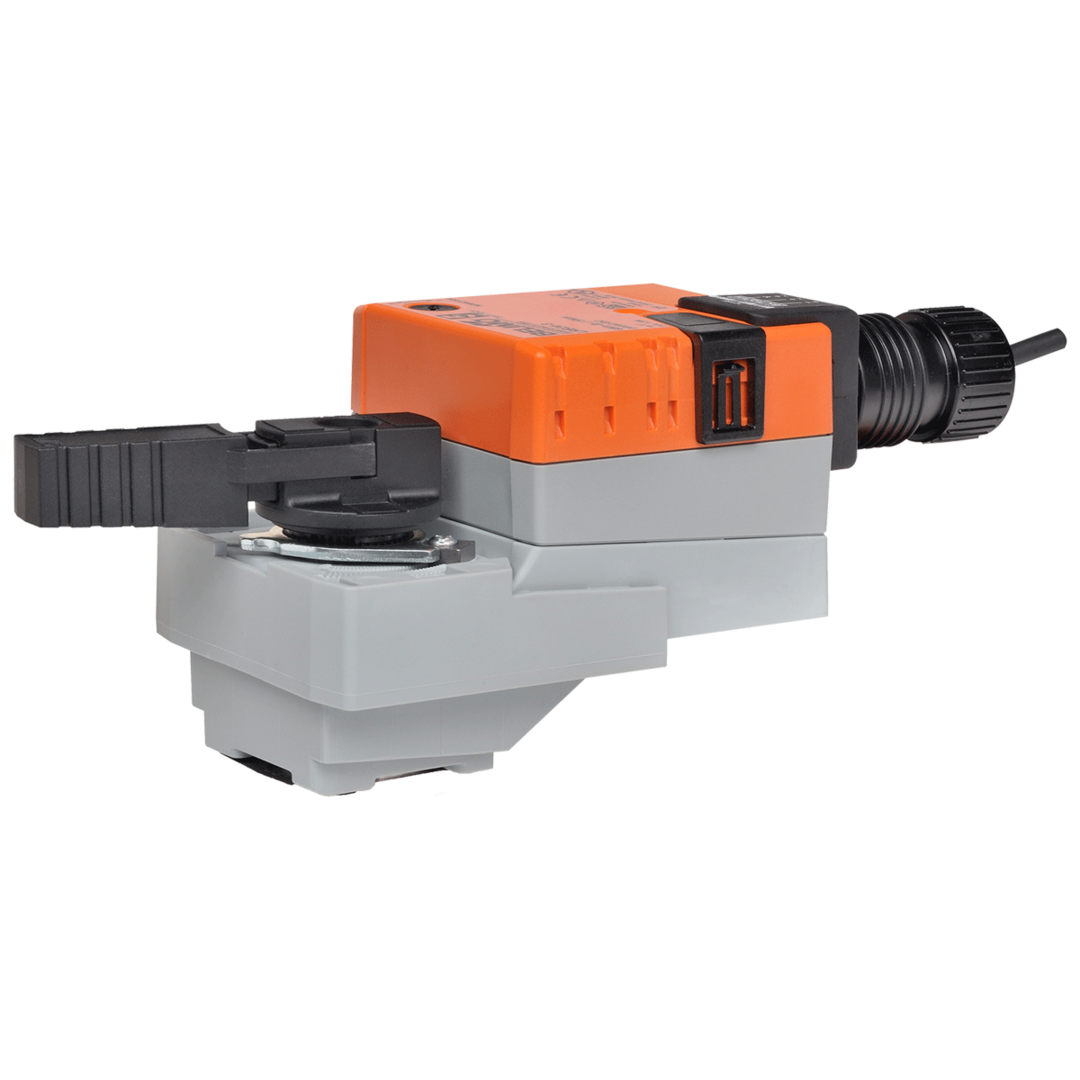

ARX24-MFT | Valve Actuator | Non-Spg | 24V | MFT | Belimo
Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable
Overview
Details for ARX24-MFT
Valve Actuator | Non-Spg | 24V | MFT
Technical Data
Power Supply: 24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%
Power Consumption Running: 3.5 W
Power Consumption Holding: 1.3 W
Transformer Sizing: 6 VA (class 2 power source)
Electrical Connection: 18 GA plenum rated cable with 1/2” conduit connector protected NEMA 2 (IP54) 3ft [1m] 10ft [3m] and 16ft [5m]
Overload Protection: electronic thoughout 0° to 90° rotation
Operating Range Y: 2 to 10 VDC, 4 to 20 mA w/ ZG-R01 (500 Ω, 1/4 W resistor), variable (VDC, floating point, on/off)
Input Impedance: 100 k Ω for 2 to 10 VDC (0.1 mA), 500 Ω for 4 to 20 mA, 1500 Ω for PWM, floating point and On/Off
Feedback Output U: 2 to 10 VDC, 0.5 mA max, VDC variable
Angle of Rotation: 90°
Direction of Rotation (Motor): reversible with built-in switch
Position Indication: integrated into handle
Manual Override: external push button
Running Time (Motor): 150 sec (default), variable (90 to 150 sec)
Ambient Temperature Range: -22°F to 122°F [-30°C to 50°C]
Storage Temperature Range: -40°F to 176°F [-40°C to 80°C]
Housing: NEMA 2, IP42, UL enclosure type 2
Agency Listings: cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC
Noise Level (Motor): <45 dB (A)
Servicing: maintenance free
Quality Standard: ISO 9001
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 75B0
- Cv
- 25
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 1.25" [32]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.3 W
- Power Consumption (Running)
- 3.5 W
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
