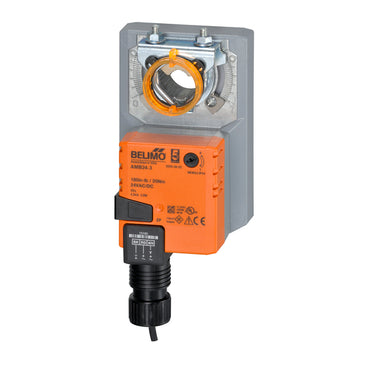

The photo is for representation purposes only and may not be a photo of product being purchased.
free shipping on orders over $999* excellent customer satisfaction secure online payment 5-star customer service
Blackhawk Supply Google Trusted Store Black Hawk Supply BBB Business Review

AMB24-3 | Damper Actuator | 180 in-lb | Non-Spg Rtn | 24V | On/Off/Floating Point | Belimo

SKU: AMB24-3 Brand: Belimo Condition: New Sale price Compare at $389.00

Regular price $137.24
FREE
SHIPPING

Details

Belimo part#: AMB24-3

"


FREE SHIPPING ON ALL BELIMO PRODUCTS! (some exceptions apply)

Damper Actuator | 180 in-lb | Non-Spg Rtn | 24V | On/Off/Floating Point

On/Off, Floating Point, Non-Spring Return, 24 V

Torque min. 180 in-lb for control of damper surfaces up to 45 sq ft.

Application

For on/off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications.

The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp, self-centered default. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.

Operation

The actuator is not provided with and does not require any limit switches, but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement.

The AM... series provides 95° of rotation and a visual indicator indicates position of the actuator. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover.

The AM...24-3… actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode.

The AM...24-3-S version is provided with 1 built-in auxiliary switch. This SPDT switch is provided for safety interfacing or signaling, for example, for fan start-up. The switching function is adjustable 0 to 95°. The auxiliary switch is double insulated so an electrical ground connection is not necessary.

Add-on auxiliary switches or feedback potentiometers are easily fastened directly onto the actuator body for signaling and switching functions.

Resources

"
"
