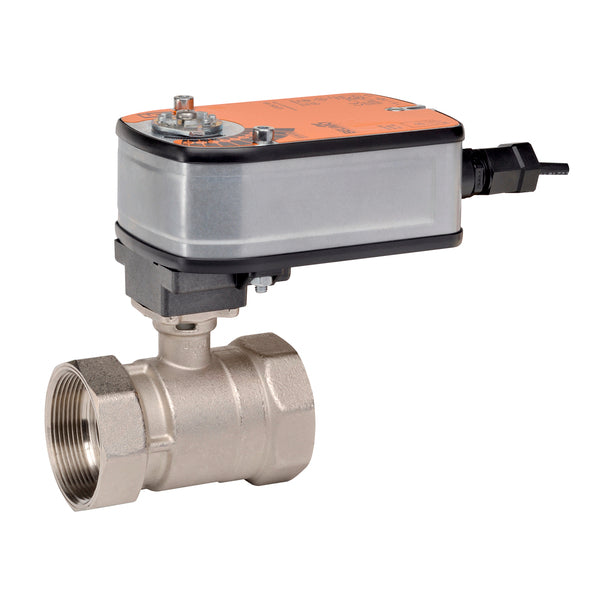

The photo is for representation purposes only and may not be a photo of product being purchased.
free shipping on orders over $999* excellent customer satisfaction secure online payment 5-star customer service
Blackhawk Supply Google Trusted Store Black Hawk Supply BBB Business Review

B225+LF120 US | CCV | 1" | 2 Way | 30 Cv | w/ Spg Rtn | 120V | On/Off | Belimo

SKU: B225+LF120 US Brand: Belimo Condition: New Sale price Compare at $623.00

Regular price $233.63
FREE
SHIPPING

Details

Belimo part#: B225+LF120 US


FREE SHIPPING ON ALL BELIMO PRODUCTS! (some exceptions apply)

CCV | 1" | 2 Way | 30 Cv | w/ Spg Rtn | 120V | On/Off

B225, 2-Way, Characterized Control Valve

Stainless Steel Ball and Stem

Application

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.

Media chilled, hot water, up to 60% glycol
Flow characteristic equal percentage
Controllable flow range 75°
Valve Size [mm] 1” [25]
Pipe connection NPT female ends
Housing Nickel-plated brass body
Ball stainless steel
Stem stainless steel
Stem seal EPDM (lubricated)
Seat PTFE
O-ring EPDM (lubricated)
Characterised disc No Disc (full flow)
Body Pressure Rating 600 psi
Close-off pressure ∆ps 200 psi
Cv 30
Weight 1.1 lb [0.50 kg]
Media Temp Range (water) 0...250°F [-18...120°C]
Leakage rate 0% for A – AB
Maintenance maintenance-free

LF120 US, Valve Actuator

On/Off, Spring Return Fail-Safe, 120 VAC

Power Supply 120 VAC, ±10%, 50/60 Hz
Power consumption in operation 5.5 W
Power consumption in rest position 3.5 W
Transformer sizing 7.5 VA
Electrical Connection 18 GA appliance cable, 3 ft [1 m], with 1/2” conduit connector
Overload Protection electronic throughout 0° to 95° rotation
Angle of rotation 90°
Direction of rotation motor reversible with built-in switch
Direction of motion fail-safe reversible with CW/CCW mounting
Position indication Mechanical
Running Time (Motor) 40...75 s
Running time fail-safe <25 s @ -4...122°F [-20...50°C], <60 s @
-22°F [-30°C
Ambient humidity max. 95% r.H., non-condensing
Ambient temperature -22...122°F [-30...50°C]
Storage temperature -40...176°F [-40...80°C]
Degree of Protection IP54, NEMA 2
Agency Listing cULus acc. To UL 873 and CAN/CSA C22.2 No. 24-93
Noise level, motor 50 dB(A)
Noise level, fail-safe 62 dB(A)
Maintenance maintenance-free
Quality Standard ISO 9001
Weight 3.4 lbs (1.54 kg.)

†Rated Impulse Voltage 800V, Type of action 1.AA, Control Pollution Degree 3
