DG250-2-63/GA24-562 | 2.5 Inch Flanged Globe Valve | 2 Way | 24 VAC/VDC Actuator | Bray

Brand: BraySKU: DG250-2-63/GA24-562
Bray | DG250-2-63/GA24-562

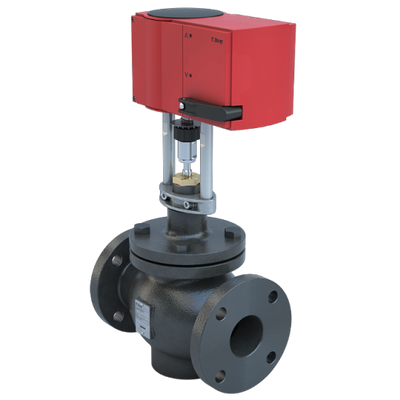

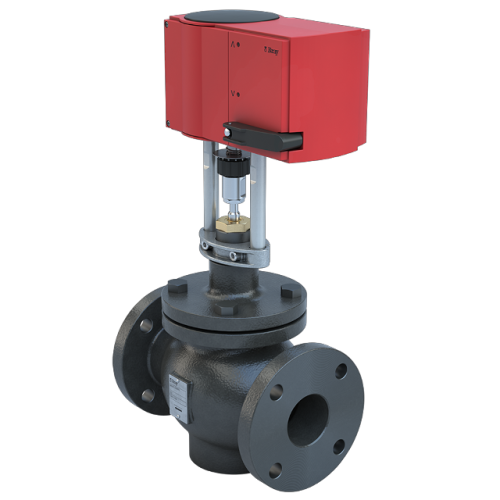

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DG250-2-63/GA24-562

Overview Details for DG250-2-63/GA24-562

2.5 Inch Flanged Globe Valve | 2 Way | 24 VAC/VDC Actuator

Description:

Bray DG250-2-63/GA24-562 2.5 Inch Flanged Globe Valve, 2 Way, 24 VAC/VDC Actuator.

Flanged globe valve model DG250-2-63 features:
- 2-1/2 inch.
- 65 mm.
- 63 Cv.
- Standard trim.
- 2 way.
- Cast iron flanged valve body.
- Bronze valve trim.
- Stainless steel stem.
- For hot water, chilled water or 50/50 glycol solutions.

Factory installed actuator model GA24-562 features:
- 24 VAC / VDC.
- Non-spring return.
- On/Off, floating and modulating.
- IP66 enclosure.
- Manual override with external crank.
- Optional auxiliary switch available.

The Bray DG Series Globe Valves provide stable and accurate control of both water, 50/50 glycol and steam , in heat exchangers, fan coil units, VAV reheat coils, and air handling units up to 900 GPM. These globe valves feature rangability of greater than 100:1 to provide precise control. Two way standard trim valves provide an equal percentage flow characteristic for use with hot water and chilled water. Two way stainless trim valves are recommended for steam applications. 3-way mixing valves provide a linear flow characteristic.

All DG series globe valves feature a cartridge style packing, which is easily replaceable while the valve is in-line. Constant plug guiding and precision-machined metal to metal seating assures ANSI Class IV shutoff (.01%) which provides low leakage and efficient operation.

The Bray GA(S) series is a direct mount line of linear motor actuators to be used primarily on PIC and globe valves. The patented drive-valve coupling allows the drive to be connected to the valve automatically as soon as the power is applied to the actuator. An external crank handle enables the desired position to be set manually as well. Microprocessor technology enables the actuator to identify the functions required and to adapt itself automatically to the control valve properties.

These actuators operate on 24V AC or DC, and all input signals- 0-10V or 4-20mA modulating output, or On/Off (2-point) or Floating (3-point) control. The actuator automatically detects the control signal applied via a 2 LED display. These actuators operate both 2 and 3-way valves and are available in non-spring return (GA) and spring return (GAS) versions.
The GA(S) series is bi-directional, selectable via screw terminals.
  • Actuator Power:24V
  • Flow:2 Way
  • Valve Size (In.):2.5


Specifications

Product
DG250-2-63/GA24-562
Valve Size
2.5"
2-Way / 3-Way
2-Way
Valve Product Type
Globe Valve
Valve Position
Normally Open
Valve End Connection
ANSI Class 125 Flanged
Assembly Cv
63
Actuator Control Signal
On/Off;Floating;Modulating
Actuator Action
Non Spring Return
Fail Position
Fail Last
Actuator Features
Time Out;Enclosed Terminal Strip
Actuator Power Supply
24 VAC
Actuator Conduit Connection
Knock Out - M20×1.5 (2×) and M16×1.5
Actuator Area Classification
IP66
Actuator Stroke Time
Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm
Close Off Pressure
86
Weight
69.4
