Details for QO816L100DS

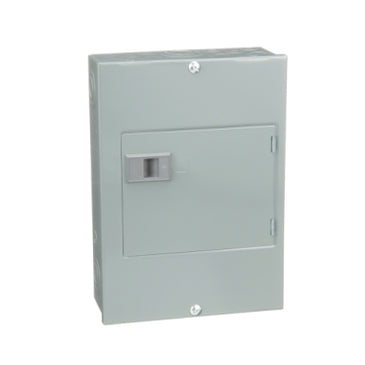

LOAD Center QO MLO, 240V, 100A, 1PH, 8SP, N1

QO® Circuit Breaker Load Centers, QO816L100DS, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a door surface cover, and is UL rated.

Specifications

Marketing Trade Name: QO
Product Type: Load Center
Cover Type: Surface cover with door
Tightening Torque: Main lugs 50 lb.in;AWG 8;aluminium/copper;Main lugs 50 lb.in;AWG 6...AWG 1/0;aluminium/copper
Load Center Type: Main lugs
Rated Current: 100 A
Number of Spaces: 8
Max Short Circuit Current Rating: 10 kA
Maximum Number of Single Pole Circuits: 16
Maximum Number of Tandem Breakers: 8
Number of Phases: 1 phase
Voltage Rating: 120/240 V AC
Wire Size: AWG 8...AWG 1 aluminium/copper
Ground Bar: Grounding bar (ordered separately)
Electrical Connection: Lugs
Wiring Configuration: 3-wire
Busbar Material: Tin plated aluminium busbar
Enclosure Material: Welded sheet steel
Surface Finish: Baked enamel Gray
Box Number: 4
Height: 12.56 in (319 mm)
Width: 8.90 in (226 mm)
Enclosure Rating: NEMA 1 indoor
Ambient Air Temperature for Operation: 23 °F (-5 °C);104 °F (40 °C)
Product Certifications: UL Listed
Category: 00101-QO 1PH LC;2-8CKT;NEMA 1;3R
Discount Schedule: DE3A
GTIN: 785901785743
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.60 in (11.684 cm)
Package 1 Width: 10.80 in (27.432 cm)
Package 1 Length: 14.40 in (36.576 cm)
Package 1 Weight: 8.25 lb(US) (3.742 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 78
Package 2 Height: 33.50 in (85.09 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 686.00 lb(US) (311.164 kg)
Warranty: 18 months
