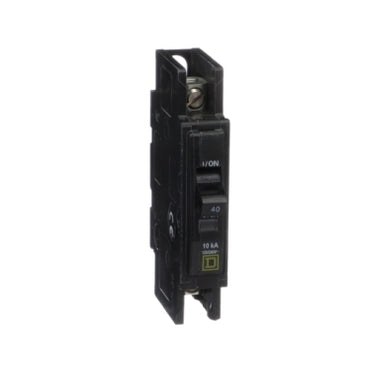

QOU140 | QOU Miniature Circuit Breaker, 40A, 1P, 120/240V, 10kA | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QOU140
Documents and manuals
Square D QOU140 Documents
Overview
Details for QOU140
QOU Miniature Circuit Breaker, 40A, 1P, 120/240V, 10kA
QO™ and QOU Miniature Circuit Breakers, QOU140, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.Specifications
- Product or Component Type
- Miniature circuit-breaker
- Range of Product
- QOU
- circuit breaker type
- Standard
- circuit breaker application
- HACR rated
- Line Rated Current
- 40 A
- electrical connection
- Slotted box lugs;line side;Slotted box lugs;load side
- [Ue] rated operational voltage
- 120/240 V AC;120 V AC;48 V DC
- Mounting Mode
- Unit mount
- AWG gauge
- AWG 14...AWG 2 aluminium/copper
- Height
- 4.05 in (102.87 mm)
- Width
- 0.75 in (19.05 mm)
- Depth
- 2.95 in (74.93 mm)
- tightening torque
- 45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
- Product Certifications
- CSA;IEC;UL Listed
- Category
- 00900-QOU BREAKERS & SWITCH
- Discount Schedule
- DE2
- GTIN
- 785901418597
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.00 in (2.54 cm)
- Package 1 Width
- 3.10 in (7.874 cm)
- Package 1 Length
- 4.50 in (11.43 cm)
- Package 1 Weight
- 5.92 oz (167.829 g)
- Warranty
- 18 months
