QOT2020 | Tandem mini circuit breaker, QO, 2 x 1 pole at 20A, 120/240 VAC, 10 kA, plug in mount | Square D by Schneider Electric

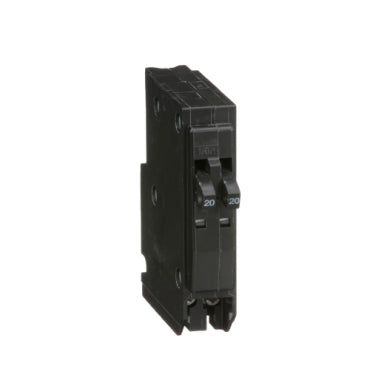

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOT2020

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Square D QOT2020 Documents

Datasheet

Overview

Details for QOT2020

Tandem mini circuit breaker, QO, 2 x 1 pole at 20A, 120/240 VAC, 10 kA, plug in mount

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO tandem mini circuit breaker has 2 one pole at 20A for 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Product: Miniature circuit-breaker
Range: QO
Current Rating: 20 A
Voltage Rating: 120/240 V AC
Mounting Type: Plug-in
Number of Poles: 1P
Circuit Breaker Type: Tandem
Ratings: HACR rated
Electrical Connection: Pressure plate
Interrupt Rating: 10 kA 120/240 V AC 50/60 Hz
Number of Panel Spaces: 1
Wire Size: AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
Tightening Torque: 44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
Height: 3.23 in (82 mm)
Width: 0.75 in (19 mm)
Depth: 2.91 in (74 mm)
Net Weight: 0.35 lb(US) (0.159 kg)
Certifications: UL Listed;CSA
Ambient Rating: 104 °F (40 °C)
Category: 00004-QO;QOT 10-30A 1P;10-60A 2P
Discount Schedule: DE2A
GTIN: 785901418085
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.30 in (8.382 cm)
Package 1 Width: 0.70 in (1.778 cm)
Package 1 Length: 3.40 in (8.636 cm)
Package 1 Weight: 5.61 oz (159.0 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 3.80 in (9.652 cm)
Package 2 Width: 0.70 in (1.778 cm)
Package 2 Length: 7.60 in (19.304 cm)
Package 2 Weight: 3.36 lb(US) (1.524 kg)
Unit Type of Package 3: CAR
Number of Units in Package 3: 100
Package 3 Height: 8.20 in (20.828 cm)
Package 3 Width: 8.30 in (21.082 cm)
Package 3 Length: 19.80 in (50.292 cm)
Package 3 Weight: 34.95 lb(US) (15.853 kg)
Warranty: 18 months
