QO120M100PRB | Load center, QO, 1 phase, 20 spaces, 20 circuits, 100A convertible main breaker, PoN, NEMA3R, UL | Square D by Schneider Electric

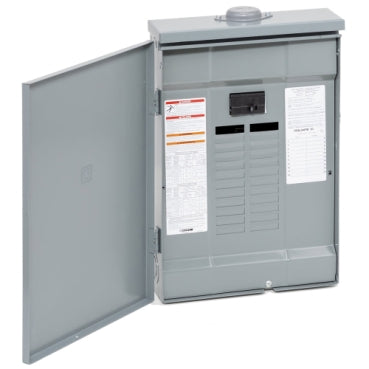

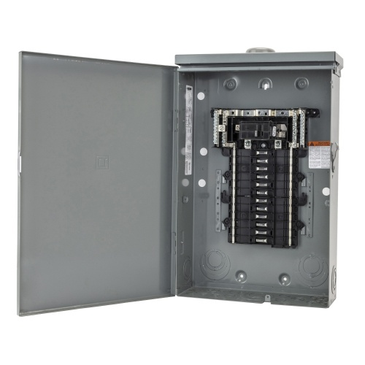

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO120M100PRB
Documents and manuals
Square D QO120M100PRB Documents
Overview
Details for QO120M100PRB
Load center, QO, 1 phase, 20 spaces, 20 circuits, 100A convertible main breaker, PoN, NEMA3R, UL
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 20 spaces and 24 circuits. This system provides a 100A convertible main breaker in a NEMA 3R enclosure. It also includes plug on neutral and is UL rated.Specifications
- Marketing Trade Name
- QO
- Product Type
- Load Center
- Enclosure Type
- Weatherproof enclosure
- Load Center Type
- Main breaker
- Rated Current
- 100 A
- Number of Spaces
- 20
- Max Short Circuit Current Rating
- 22 kA
- Maximum Number of Single Pole Circuits
- 24
- Maximum Number of Tandem Breakers
- 4
- Number of Phases
- 1 phase
- Ground Bar
- Grounding bar (ordered separately)
- Box Number
- 4R
- Height
- 22.05 in (560 mm)
- Width
- 14.76 in (375 mm)
- Depth
- 4.53 in (115 mm)
- Net Weight
- 25.00 lb(US) (11.340 kg)
- Enclosure Rating
- NEMA 3R outdoor
- Ambient Air Temperature for Operation
- 23 °F (-5 °C);104 °F (40 °C)
- Product Certifications
- UL Listed
- Category
- 10002-QO PON 1PH LC;12-60 CKT;N3R
- Discount Schedule
- DE3A
- GTIN
- 785901609513
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.00 in (12.7 cm)
- Package 1 Width
- 15.50 in (39.37 cm)
- Package 1 Length
- 24.00 in (60.96 cm)
- Package 1 Weight
- 25.40 lb(US) (11.52 kg)
