Documents: 8911DPSO42V09

Datasheet More Info

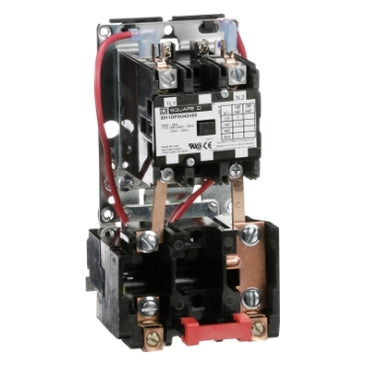

8911DPSO42V09 | Definite Purpose Starter, 40A, Open, 220V 50 Hz, 208-240V 60 Hz, 2-Poles, 1-Phase | Square D

Brand: Square DSKU: 8911DPSO42V09

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8911DPSO42V09

Jump to: Overview & Specifications Reviews

Overview Details for 8911DPSO42V09

Definite Purpose Starter, 40A, Open, 220V 50 Hz, 208-240V 60 Hz, 2-Poles, 1-Phase

Definite Purpose Starter

Line Rated Current: 40A
Poles Description: 2-Pole
Number of Phases: 1-Phase
Degree of Protection: Open Device
Control Circuit Voltage: 220V AC 50 Hz,208-240V AC 60 Hz

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz 220 VAC 50 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This starter doesn't have an enclosure. Enclosures are available. Starter is 7.0 inches tall, 3.5 inches wide and 4.0 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
