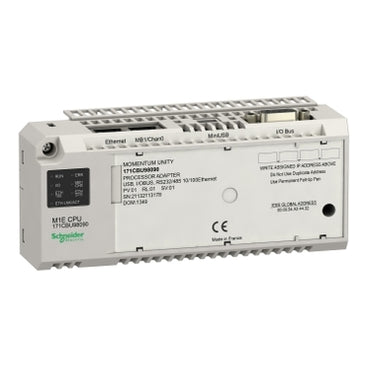

UNITY M1E SERIAL 232/485
This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This Unity M1E processor is equipped with Ethernet and USB integrated connection ports. The Spear 320s processor's communication services are Modbus messaging 125 words, 200 I/O message per second. The processor with Unity Pro software has web services like CPU status, Ethernet statistics, bandwidth monitoring, home pages and properties. It is an IP20 rated product. Its dimensions are 144mm (width) x 53.47mm (depth) x 60.6mm (height) and weighs 0.163kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM, C-Tick. It meets UL 508, CSA C22.2 No 142 and EN/IEC 61131-2 standards. This product is compatible with Modicon STB I/O. It supports 35mm symmetrical DIN rail mount. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.Specifications
- Range of Product
- Modicon Momentum automation platform
- Product or Component Type
- Processor
- Product Compatibility
- Modicon STB I/O
- integrated connection type
- Ethernet;USB port
- concept
- Transparent Ready class B
- web services
- CPU status;Ethernet statistics;Bandwidth monitoring;Home pages;Properties
- Software Designation
- Unity Pro
- communication service
- Modbus messaging 125 words;200 I/O message per second;Global Data;1600 I/O message per second;Modbus TCP I/O Scanner and Messaging
- processor name
- Spear 320s
- word length
- 32 bit
- supply voltage limits
- 4.75…5.25 V
- clock frequency
- 333 MHz
- topology
- Multidrop Modbus;Star Modbus TCP
- communication port protocol
- Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire;Modbus TCP ETHERNET - 1 RJ45 10/100 Mbps - twisted shielded pairs cable CAT 5E UTP
- method of access
- Client/server;Master/slave
- control parameter
- CRC-16 for Modbus;CRC-32 for Modbus TCP/IP
- addressing
- 1...247 Modbus;Unique IEEE global address Modbus TCP
- fail state
- Safe I/O mode
- memory description
- Program memory IEC 3584 kB;Program memory LL984 3584 kB
- register words
- 26048
- I/O limit processor capacity
- 2048 inputs/2048 outputs
- number of devices
- 32 Modbus
- exact time for 1 Kinstruction
- 83 ns
- local signalling
- for processor running (RUN) 1 LED (green);for processor or system fault (ERR) 1 LED (red);for I/O module fault (I/O) 1 LED (red);for channel 0 operating (CH0) 1 LED (yellow);for data rate (ETH 100) 1 LED (green);for data rate (ETH LINK) 1 LED (green);for status of Ethernet network (ETH STS) 1 LED (green)
- Marking
- CE
- current consumption
- 500 mA 5 V DC
- module format
- Standard
- product mounting
- 35 mm symmetrical DIN rail
- Height
- 2.39 in (60.6 mm)
- Width
- 5.67 in (144 mm)
- Depth
- 2.11 in (53.47 mm)
- Net Weight
- 0.36 lb(US) (0.163 kg)
- Material
- Lexan
- dielectric strength
- 0 V not isolated RS485/RS232;5000 V for 1 minute ETHERNET
- Product Certifications
- FM;C-tick
- Standards
- UL 508;CSA C22.2 No 142;EN/IEC 61131-2
- IP degree of protection
- IP20
- shock resistance
- 15 gn 11 ms sinusoidal vibrations
- resistance to electrostatic discharge
- 6 kV contact EN/IEC 61131-2 zone B;6 kV contact IACS E10;8 kV on air EN/IEC 61000-4-2
- resistance to electromagnetic fields
- 13.72 V/m (15 V/m) 80...2700 MHz EN/IEC 61000-4-3
- Ambient air temperature for operation
- 32…140 °F (0…60 °C)
- Ambient Air Temperature for Storage
- -40…185 °F (-40…85 °C)
- Relative humidity
- 5…96 %
- Operating altitude
- <= 6561.68 ft (2000 m)
- Category
- 18206-MOMENTUM PROCESSORS;I/O BASES;CONN.
- Discount Schedule
- PC31
- GTIN
- 3595864171395
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.95 in (7.5 cm)
- Package 1 Width
- 4.33 in (11.0 cm)
- Package 1 Length
- 8.15 in (20.7 cm)
- Package 1 Weight
- 8.47 oz (240.0 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 8
- Package 2 Height
- 11.81 in (30.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 5.22 lb(US) (2.37 kg)
