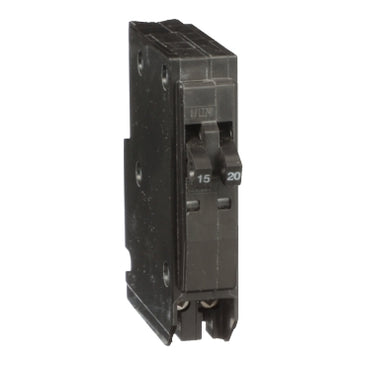

QOT1520 | MINIATURE CIRCUIT BREAKER, QO Tandem, 15/20 A, 1P, 120/240 V, 10 kA, Plug in | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QOT1520
Documents and manuals
Square D QOT1520 Documents
Overview
Details for QOT1520
MINIATURE CIRCUIT BREAKER, QO Tandem, 15/20 A, 1P, 120/240 V, 10 kA, Plug in
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO tandem mini circuit breaker has 1 one pole at 15A and 1 one pole at 20A for 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 QOT tandem breakers are UL Listed and CSA certified.Specifications
- Product
- Miniature circuit-breaker
- Range
- QO
- Current Rating
- 20 A;15 A
- Voltage Rating
- 120/240 V AC
- Mounting Type
- Plug-in
- Number of Poles
- 1P
- Circuit Breaker Type
- Tandem
- Ratings
- HACR rated
- Electrical Connection
- Pressure plate
- Interrupt Rating
- 10 kA 120/240 V AC 50/60 Hz
- Number of Panel Spaces
- 1
- Wire Size
- AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
- Tightening Torque
- 44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
- Height
- 3.23 in (82 mm)
- Width
- 0.75 in (19 mm)
- Depth
- 2.91 in (74 mm)
- Net Weight
- 0.31 lb(US) (0.141 kg)
- Certifications
- UL Listed;CSA
- Ambient Rating
- 104 °F (40 °C)
- Category
- 00004-QO;QOT 10-30A 1P;10-60A 2P
- Discount Schedule
- DE2A
- GTIN
- 785901418047
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.70 in (1.778 cm)
- Package 1 Width
- 3.50 in (8.89 cm)
- Package 1 Length
- 3.30 in (8.382 cm)
- Package 1 Weight
- 4.96 oz (140.614 g)
- Warranty
- 18 months
