QOU225 | MINIATURE CIRCUIT BREAKER 120/240V 25A | Square D by Schneider Electric

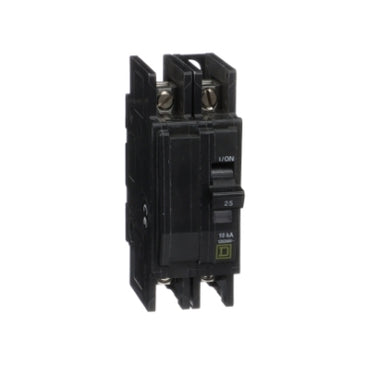

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOU225

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Square D QOU225 Documents

Datasheet

Overview

Details for QOU225

MINIATURE CIRCUIT BREAKER 120/240V 25A

QOU Miniature Circuit Breaker, 25A, 2P, 120/240V, 10kA QO™ and QOU Miniature Circuit Breakers, QOU225, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.

Specifications

Product or Component Type: Miniature circuit-breaker
Range of Product: QOU
circuit breaker type: Standard
circuit breaker application: HACR rated
Line Rated Current: 25 A
electrical connection: Slotted box lugs;line side;Slotted box lugs;load side
[Ue] rated operational voltage: 120/240 V AC;120 V AC;48 V DC
Mounting Mode: Unit mount
AWG gauge: AWG 14...AWG 2 aluminium/copper
Height: 4.05 in (102.87 mm)
Width: 1.5 in (38.10 mm)
Depth: 2.95 in (74.93 mm)
tightening torque: 45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
Product Certifications: IEC;CSA;UL Listed
Category: 00900-QOU BREAKERS & SWITCH
Discount Schedule: DE2
GTIN: 785901489146
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Package 1 Length: 4.90 in (12.446 cm)
Number of Units in Package 1: 1
Package 1 Width: 2.20 in (5.588 cm)
Package 1 Height: 3.40 in (8.636 cm)
Package 1 Weight: 12.17 oz (345.0 g)
Warranty: 18 months
