QO324L125G | LOAD Center QO MLO 240V 125A 3PH 24SP | Square D by Schneider Electric

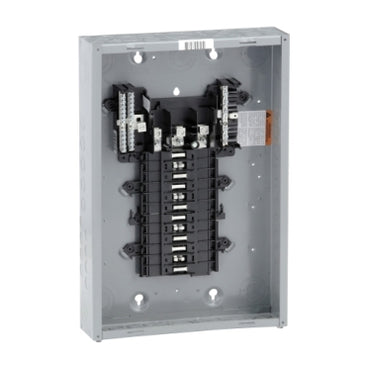

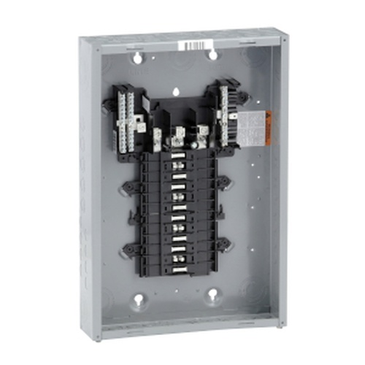

Square D | QO324L125G
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO324L125G

Documents and manuals

Square D QO324L125G Documents

Overview

Details for QO324L125G

LOAD Center QO MLO 240V 125A 3PH 24SP

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 24 spaces and 24 circuits. This system provides 125A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, and is UL rated.

Specifications

Marketing Trade Name
QO
Product Type
Load Center
Cover Type
Order separately
Tightening Torque
Main lugs 50 lb.in;AWG 6...AWG 2/0;aluminium/copper;Cover 20 lb.in
Load Center Type
Main lugs
Rated Current
125 A
Number of Spaces
24
Max Short Circuit Current Rating
65 kA
Maximum Number of Single Pole Circuits
24
Maximum Number of Tandem Breakers
0
Number of Phases
3 phase
Voltage Rating
208Y/120 V AC;240/120 V delta AC;240 V delta AC
Wire Size
AWG 6...AWG 2/0 aluminium/copper
Ground Bar
Grounding bar included (not installed)
Electrical Connection
Lugs
Wiring Configuration
3-wire;4-wire
Busbar Material
Tin plated copper busbar
Enclosure Material
Welded sheet steel
Surface Finish
Baked enamel Gray
Box Number
7
Height
20.91 in (531 mm)
Width
14.25 in (362 mm)
Enclosure Rating
NEMA 1 indoor
Ambient Air Temperature for Operation
23 °F (-5 °C);104 °F (40 °C)
Product Certifications
UL Listed
Category
00011-QO 3PH LOAD CENTER;INDOOR
Discount Schedule
DE3
GTIN
785901295433
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.10 in (10.414 cm)
Package 1 Width
14.60 in (37.084 cm)
Package 1 Length
22.00 in (55.88 cm)
Package 1 Weight
13.29 lb(US) (6.028 kg)
Unit Type of Package 2
PAL
Number of Units in Package 2
45
Package 2 Height
40.00 in (101.6 cm)
Package 2 Width
40.00 in (101.6 cm)
Package 2 Length
48.00 in (121.92 cm)
Package 2 Weight
599.00 lb(US) (271.702 kg)
Warranty
18 months
