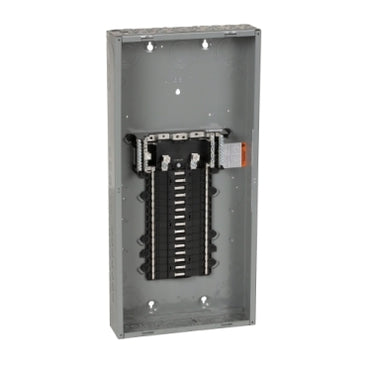

QO130L125PG | QO PLUG-ON NEUT INDR 125A MLO 30CIR | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO130L125PG
Documents and manuals
Square D QO130L125PG Documents
Overview
Details for QO130L125PG
QO PLUG-ON NEUT INDR 125A MLO 30CIR
Load center, QO, 1 phase, 30 spaces, 30 circuits, 125A convertible main lugs, PoN, NEMA1, grnd bar, UL QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 30 spaces and 34 circuits. This system provides 125A convertible main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, and is UL rated. QO load center is UL Listed.Specifications
- Marketing Trade Name
- QO
- Product Type
- Load Center
- Cover Type
- Order separately
- Tightening Torque
- Main lugs 50 lb.in;AWG 6...AWG 2/0;aluminium/copper;Cover 20 lb.in
- Load Center Type
- Main lugs
- Rated Current
- 125 A
- Number of Spaces
- 30
- Max Short Circuit Current Rating
- 65 kA
- Maximum Number of Single Pole Circuits
- 34
- Maximum Number of Tandem Breakers
- 4
- Number of Phases
- 1 phase
- Voltage Rating
- 120/240 V AC
- Wire Size
- AWG 6...AWG 2/0 aluminium/copper
- Ground Bar
- Grounding bar included (not installed)
- Electrical Connection
- Lugs
- Wiring Configuration
- 3-wire
- Busbar Material
- Tin plated copper busbar
- Enclosure Material
- Welded sheet steel
- Surface Finish
- Baked enamel Gray
- Box Number
- 7
- Height
- 29.84 in (758 mm)
- Width
- 14.25 in (362 mm)
- Depth
- 3.74 in (95 mm)
- Enclosure Rating
- NEMA 1 indoor
- Ambient Air Temperature for Operation
- 23 °F (-5 °C);104 °F (40 °C)
- Product Certifications
- UL listed file E-6294
- Category
- 10003-QO PON 1PH LC;12-60 CKT;ML N1
- Discount Schedule
- DE3A
- GTIN
- 785901121411
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.75 in (9.525 cm)
- Package 1 Width
- 12.75 in (32.385 cm)
- Package 1 Length
- 20.75 in (52.705 cm)
- Package 1 Weight
- 15.02 lb(US) (6.813 kg)
