QOU125 | MINIATURE CIRCUIT BREAKER 120/240V 25A | Square D by Schneider Electric

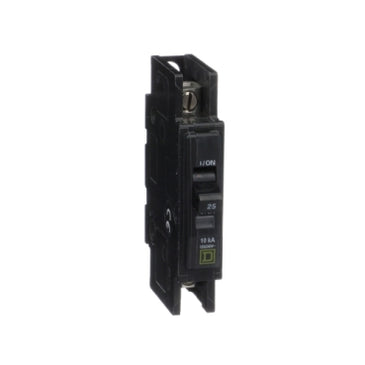

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOU125

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Square D QOU125 Documents

Datasheet

Overview

Details for QOU125

MINIATURE CIRCUIT BREAKER 120/240V 25A

QOU Miniature Circuit Breaker, 25A, 1P, 120/240V, 10kA. Label: QOU Unit Mount Circuit Breakers

QOU Unit Mount Circuit Breakers

Product or component type: miniature circuit-breaker

Circuit breaker application: HACR and Switching Duty rated

Range of product: QOU

Circuit breaker type: standard

QO™ and QOU Miniature Circuit Breakers, QOU125, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.

Specifications

Product or Component Type: Miniature circuit-breaker
Range of Product: QOU
circuit breaker type: Standard
circuit breaker application: HACR rated
Line Rated Current: 25 A
electrical connection: Slotted box lugs;line side;Slotted box lugs;load side
[Ue] rated operational voltage: 120/240 V AC;120 V AC;48 V DC
Mounting Mode: Unit mount
AWG gauge: AWG 14...AWG 2 aluminium/copper
Height: 4.05 in (102.87 mm)
Width: 0.75 in (19.05 mm)
Depth: 2.95 in (74.93 mm)
tightening torque: 45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
Product Certifications: UL Listed;IEC;CSA
Category: 00900-QOU BREAKERS & SWITCH
Discount Schedule: DE2
GTIN: 785901489085
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Package 1 Length: 4.50 in (11.43 cm)
Number of Units in Package 1: 1
Package 1 Width: 3.10 in (7.874 cm)
Package 1 Height: 0.90 in (2.286 cm)
Package 1 Weight: 5.61 oz (159.0 g)
Warranty: 18 months
