QOU120 | QO Miniature Circuit Breaker, 20A, 1-Pole, 120V, 10kA, Plug-in Mount | Square D by Schneider Electric

Brand: Square DSKU: QOU120

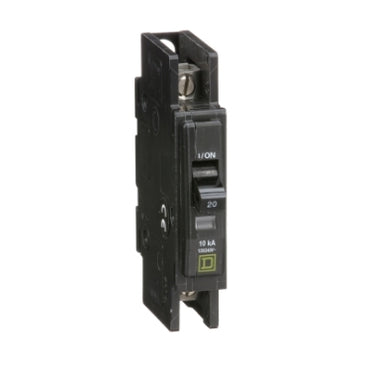

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOU120

Overview & Specifications Reviews Parts & Accessories

Overview Details for QOU120

QO Miniature Circuit Breaker, 20A, 1-Pole, 120V, 10kA, Plug-in Mount

QO Miniature Circuit Breaker

Line Rated Current: 20A
Poles Description: 1-Pole
System Voltage: 120/240V AC, 48V DC
Breaking Capacity: 10kA
Mounting Mode: Plug-in
Circuit Breaker Type: Standard
Electrical Connection: Pressure Plate

QO™ and QOU Miniature Circuit Breakers, QOU120, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.

Specifications

Product or Component Type: Miniature circuit-breaker
Range of Product: QOU
circuit breaker type: Standard
circuit breaker application: HACR rated
Line Rated Current: 20 A
electrical connection: Slotted box lugs;line side;Slotted box lugs;load side
[Ue] rated operational voltage: 120/240 V AC;120 V AC;48 V DC
Mounting Mode: Unit mount
AWG gauge: AWG 14...AWG 2 aluminium/copper
Height: 4.05 in (102.87 mm)
Width: 0.75 in (19.05 mm)
Depth: 2.95 in (74.93 mm)
tightening torque: 45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
Product Certifications: CSA;IEC;UL Listed
Category: 00900-QOU BREAKERS & SWITCH
Discount Schedule: DE2
GTIN: 785901418535
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.36 in (0.914 cm)
Package 1 Width: 0.16 in (0.406 cm)
Package 1 Length: 0.49 in (1.245 cm)
Package 1 Weight: 4.97 oz (141 g)
Warranty: 18 months
