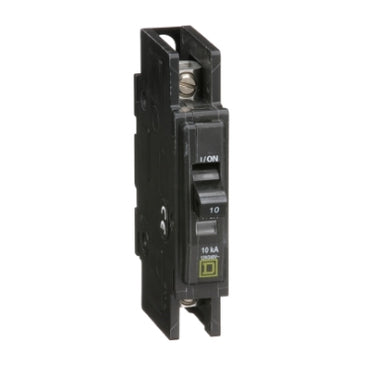

QOU110 | Thermal Magnetic Circuit Breaker, Miniature, QO Series, 240 VAC, 10 A, 1 Pole, DIN Rail | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOU110

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Square D QOU110 Documents

Datasheet

Overview

Details for QOU110

Thermal Magnetic Circuit Breaker, Miniature, QO Series, 240 VAC, 10 A, 1 Pole, DIN Rail

QO™ and QOU Miniature Circuit Breakers, QOU110, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.

Specifications

Product or Component Type: Miniature circuit-breaker
Range of Product: QOU
circuit breaker type: Standard
circuit breaker application: HACR rated
Line Rated Current: 10 A
electrical connection: Slotted box lugs;line side;Slotted box lugs;load side
[Ue] rated operational voltage: 120/240 V AC;120 V AC;48 V DC
Mounting Mode: Unit mount
AWG gauge: AWG 14...AWG 2 aluminium/copper
Height: 4.05 in (102.87 mm)
Width: 0.75 in (19.05 mm)
Depth: 2.95 in (74.93 mm)
tightening torque: 45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
Product Certifications: IEC;CSA;UL Listed
Category: 00900-QOU BREAKERS & SWITCH
Discount Schedule: DE2
GTIN: 785901205678
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.00 in (2.54 cm)
Package 1 Width: 3.10 in (7.874 cm)
Package 1 Length: 4.50 in (11.43 cm)
Package 1 Weight: 6.40 oz (181.437 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 66
Package 2 Height: 3.30 in (8.382 cm)
Package 2 Width: 14.00 in (35.56 cm)
Package 2 Length: 20.90 in (53.086 cm)
Package 2 Weight: 24.75 lb(US) (11.226 kg)
Unit Type of Package 3: PAL
Number of Units in Package 3: 2772
Package 3 Height: 40.00 in (101.6 cm)
Package 3 Width: 40.00 in (101.6 cm)
Package 3 Length: 48.00 in (121.92 cm)
Package 3 Weight: 1014.00 lb(US) (459.942 kg)
Warranty: 18 months
