QOT1515 | MINIATURE CIRCUIT BREAKER, QO Tandem, 15 A, 1P, 120/240 V, 10 kA, Plug in | Square D by Schneider Electric

Square D | QOT1515

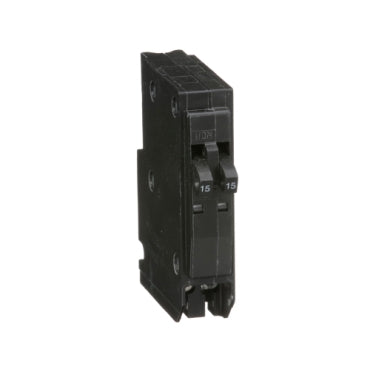

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QOT1515

Documents and manuals

Square D QOT1515 Documents

Overview

Details for QOT1515

MINIATURE CIRCUIT BREAKER, QO Tandem, 15 A, 1P, 120/240 V, 10 kA, Plug in

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO tandem mini circuit breaker has 2 one pole at 15A for 120/240VAC This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 A full line of accessories are available. The box lugs will accept one 14 AWG to 8 AWG copper or 12 AWG to 8 AWG aluminum wire. This circuit breaker has a height of 3.22 inches, a width of 0.75 inch and a depth of 2.91 inches. QO tandem circuit breakers are UL Listed and CSA certified.

Specifications

Product
Miniature circuit-breaker
Range
QO
Current Rating
15 A
Voltage Rating
120/240 V AC
Mounting Type
Plug-in
Number of Poles
1P
Circuit Breaker Type
Tandem
Ratings
HACR rated
Electrical Connection
Pressure plate
Interrupt Rating
10 kA 120/240 V AC 50/60 Hz
Number of Panel Spaces
1
Wire Size
AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
Tightening Torque
44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
Height
3.23 in (82 mm)
Width
0.75 in (19 mm)
Depth
2.91 in (74 mm)
Net Weight
0.32 lb(US) (0.145 kg)
Certifications
UL Listed;CSA
Ambient Rating
104 °F (40 °C)
Category
00004-QO;QOT 10-30A 1P;10-60A 2P
Discount Schedule
DE2A
GTIN
785901418009
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
0.70 in (1.778 cm)
Package 1 Width
3.50 in (8.89 cm)
Package 1 Length
3.20 in (8.128 cm)
Package 1 Weight
5.12 oz (145.15 g)
Unit Type of Package 2
PAL
Number of Units in Package 2
3600
Package 2 Height
40.00 in (101.6 cm)
Package 2 Width
40.00 in (101.6 cm)
Package 2 Length
48.00 in (121.92 cm)
Package 2 Weight
1240.00 lb(US) (562.454 kg)
Warranty
18 months
