QO612L100DS | LOAD Center QO MLO 240V 100A 1PH 6SP N1 | Square D by Schneider Electric

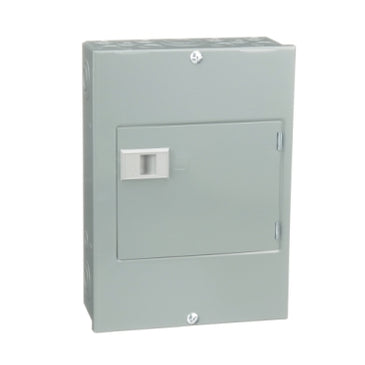

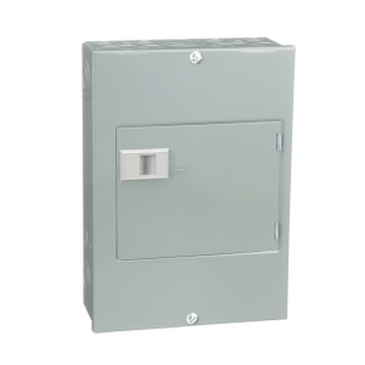

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO612L100DS
Documents and manuals
Square D QO612L100DS Documents
Overview
Details for QO612L100DS
LOAD Center QO MLO 240V 100A 1PH 6SP N1
QO® Circuit Breaker Load Centers, QO612L100DS, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 6 spaces and 12 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a door surface cover, and is UL rated.Specifications
- Marketing Trade Name
- QO
- Product Type
- Load Center
- Cover Type
- Surface cover with door
- Tightening Torque
- Main lugs 50 lb.in;AWG 8;aluminium/copper;Main lugs 50 lb.in;AWG 6...AWG 1/0;aluminium/copper
- Load Center Type
- Main lugs
- Rated Current
- 100 A
- Number of Spaces
- 6
- Max Short Circuit Current Rating
- 10 kA
- Maximum Number of Single Pole Circuits
- 12
- Maximum Number of Tandem Breakers
- 6
- Number of Phases
- 1 phase
- Voltage Rating
- 120/240 V AC
- Wire Size
- AWG 8...AWG 1 aluminium/copper
- Ground Bar
- Grounding bar (ordered separately)
- Electrical Connection
- Lugs
- Wiring Configuration
- 3-wire
- Busbar Material
- Tin plated aluminium busbar
- Enclosure Material
- Welded sheet steel
- Surface Finish
- Baked enamel Gray
- Box Number
- 4
- Height
- 12.56 in (319 mm)
- Width
- 8.90 in (226 mm)
- Enclosure Rating
- NEMA 1 indoor
- Ambient Air Temperature for Operation
- 23 °F (-5 °C);104 °F (40 °C)
- Product Certifications
- UL Listed
- Category
- 00101-QO 1PH LC;2-8CKT;NEMA 1;3R
- Discount Schedule
- DE3A
- GTIN
- 785901785620
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 14.40 in (36.576 cm)
- Package 1 Width
- 4.40 in (11.176 cm)
- Package 1 Length
- 10.70 in (27.178 cm)
- Package 1 Weight
- 8.29 lb(US) (3.76 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 78
- Package 2 Height
- 34.00 in (86.36 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 671.00 lb(US) (304.36 kg)
- Warranty
- 18 months
