MD3304X | Motor disconnect switch, 3 P, 30 A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure | Square D

Brand: Square DSKU: MD3304X

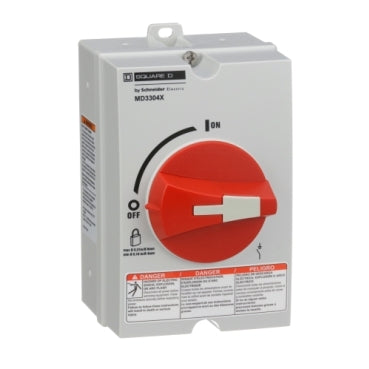

Square D | MD3304X
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MD3304X
Jump to: Overview & Specifications Reviews

Overview Details for MD3304X

Motor disconnect switch, 3 P, 30 A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure

The MD motor disconnect switch is listed UL 508 Suitable for Motor Control (UL File E164864) and conforms to IEC standard 60947-3. It is in a compact NEMA 4X enclosure suitable for use in NEMA 1, 3, 3R, 4, 4X, and 12 applications. This three pole 30 A motor disconnect switch has a 7.5 HP rating at 240 VAC, a 20 HP rating at 480 VAC and a 25 HP rating at 6000VAC. The red handle interlock prevents the removal of the cover when the switch is in the ON position. This MD motor disconnect switch has an extremely small footprint. It is 6.38 inches tall, 3.9 inches wide and 4.37 deep. Switch is UL listed and CSA certified.

Specifications

Range
MD
Product
Motor Disconnect Switch
Current Rating
30 A
Horsepower Rating
7.5 hp 220/240 V AC;20 hp 440/480 V AC;25 hp 600 V AC
Enclosure Rating
NEMA 4X
Certifications
UL Listed
Height
6.38 in (162.05 mm)
Width
3.90 in (99.06 mm)
Depth
4.37 in (111.00 mm)
Product Weight
1.50 lb(US) (0.68 kg)
Category
21734-TESYS VLS DISCONNECT SWITCHES
Discount Schedule
CP1
GTIN
3606480190223
Returnability
Yes
Country of origin
TN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.92 in (12.5 cm)
Package 1 Width
5.20 in (13.2 cm)
Package 1 Length
7.17 in (18.2 cm)
Package 1 Weight
23.49 oz (666.0 g)
Unit Type of Package 2
S04
Number of Units in Package 2
18
Package 2 Height
11.81 in (30.0 cm)
Package 2 Width
15.75 in (40.0 cm)
Package 2 Length
23.62 in (60.0 cm)
Package 2 Weight
29.19 lb(US) (13.24 kg)
Unit Type of Package 3
P06
Number of Units in Package 3
72
Package 3 Height
30.31 in (77.0 cm)
Package 3 Width
31.50 in (80.0 cm)
Package 3 Length
23.62 in (60.0 cm)
Package 3 Weight
135.50 lb(US) (61.46 kg)
Warranty
18 months
