MD3604X | Switch Motor Disconnect 60A 3P NEMA 4X | Square D

Brand: Square DSKU: MD3604X

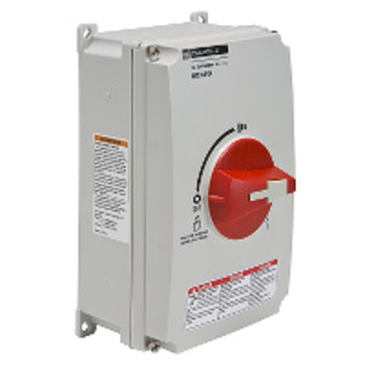

Square D | MD3604X
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MD3604X
Jump to: Overview & Specifications Reviews

Overview Details for MD3604X

Switch Motor Disconnect 60A 3P NEMA 4X

The MD motor disconnect switch is listed UL 508 Suitable for Motor Control (UL File E164864) and conforms to IEC standard 60947-3. It is in a compact NEMA 4X enclosure suitable for use in NEMA 1, 3, 3R, 4, 4X, and 12 applications. This three pole 60 A motor disconnect switch has a 20 HP rating at 240 VAC, a 40 HP rating at 480 VAC and a 40 HP rating at 6000VAC. The red handle interlock prevents the removal of the cover when the switch is in the ON position. This MD motor disconnect switch has an extremely small footprint. It is 6.38 inches tall, 3.9 inches wide and 4.37 deep. Switch is UL listed and CSA certified.

Specifications

Range
MD
Product
Motor Disconnect Switch
Current Rating
60 A
Horsepower Rating
20 hp 220/240 V AC;40 hp 440/480 V AC;40 hp 600 V AC
Enclosure Rating
NEMA 4X
Certifications
UL Listed
Height
8.27 in (210.06 mm)
Width
4.94 in (125.48 mm)
Depth
4.37 in (111.00 mm)
Product Weight
2.12 lb(US) (0.96 kg)
Category
21734-TESYS VLS DISCONNECT SWITCHES
Discount Schedule
CP1
GTIN
3606480190230
Returnability
Yes
Country of origin
TN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.80 in (12.2 cm)
Package 1 Width
5.51 in (14.0 cm)
Package 1 Length
10.04 in (25.5 cm)
Package 1 Weight
33.47 oz (949.0 g)
Unit Type of Package 2
S04
Number of Units in Package 2
12
Package 2 Height
11.81 in (30.0 cm)
Package 2 Width
15.75 in (40.0 cm)
Package 2 Length
23.62 in (60.0 cm)
Package 2 Weight
27.87 lb(US) (12.64 kg)
Unit Type of Package 3
P06
Number of Units in Package 3
48
Package 3 Height
30.31 in (77.0 cm)
Package 3 Width
31.50 in (80.0 cm)
Package 3 Length
23.62 in (60.0 cm)
Package 3 Weight
130.21 lb(US) (59.06 kg)
Warranty
18 months
