HOMT230250 | Miniature Breaker, Homeline, Quad, 120/240V, 10kA, 30/50A, UL Listed | Square D by Schneider Electric

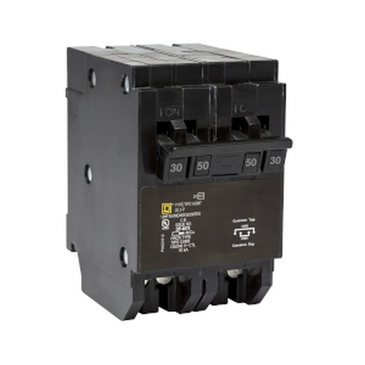

Square D | HOMT230250

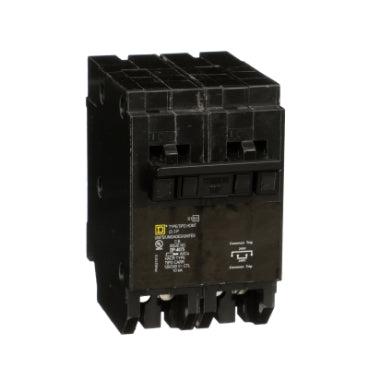

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOMT230250

Documents and manuals

Square D HOMT230250 Documents

Overview

Details for HOMT230250

Miniature Breaker, Homeline, Quad, 120/240V, 10kA, 30/50A, UL Listed

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two tandem 2 pole thermal magnetic circuit breakers manufactured in tandem. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker and a two pole breaker. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. One of the two pole breaker is rated 30A at 120/240 VAC and other two pole breaker is rated 50A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 30A two pole breaker of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The 50A two pole breaker of this quad tandem breaker will accept 14 AWG to 6 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.

Specifications

Product
Miniature circuit-breaker
Range
Homeline
Current Rating
30 A;50 A
Certifications
UL Listed
Voltage Rating
120/240 V AC
Mounting Type
Plug-in
Number of Poles
2P
Short Circuit Current Rating
10 kA
Number of Spaces
2.0
Circuit Breaker Type
Quad tandem
Ratings
HACR rated
Electrical Connection
Box lugs
Wire Size
AWG 14...AWG 8 aluminium/copper)1;AWG 14...AWG 6 aluminium/copper)1
tightening torque
35.40…40.71 lbf.in (4.0…4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 14...AWG 6);35.40…40.71 lbf.in (4.0…4.6 N.m) 0.00…0.03 in² (2.5…20 mm²) (AWG 12...AWG 6)
Height
3.13 in (79.50 mm)
Width
1.97 in (50.04 mm)
Depth
3.29 in (83.57 mm)
Ambient air temperature for operation
104 °F (40 °C)
Category
00046-HOM/T 15-30A 1P; 15-60A 2P
Discount Schedule
DE3D
GTIN
785901970484
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.15 in (8 cm)
Package 1 Width
1.97 in (5 cm)
Package 1 Length
3.31 in (8.4 cm)
Package 1 Weight
16.00 oz (453.592 g)
