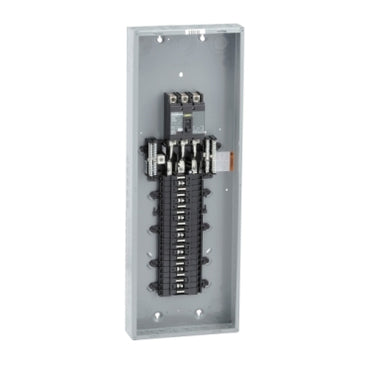

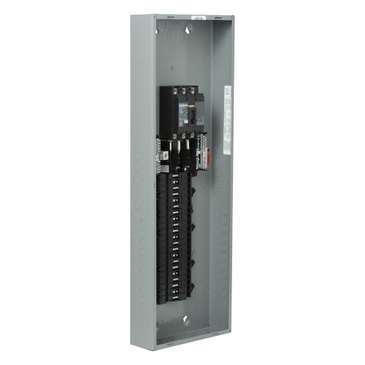

QO342MQ225 | LOAD Center QO MB 225A 3PH 42 CIRCUIT | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO342MQ225
Documents and manuals
Square D QO342MQ225 Documents
Overview
Details for QO342MQ225
LOAD Center QO MB 225A 3PH 42 CIRCUIT
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 42 spaces and 42 circuits. This system provides a 225A convertible main breaker in a NEMA 1 enclosure. It also includes a QDL circuit breaker and is UL rated.Specifications
- Marketing Trade Name
- QO
- Product Type
- Load Center
- Cover Type
- Order separately
- Tightening Torque
- Cover 20 lb.in
- Load Center Type
- Main breaker
- Rated Current
- 225 A
- Number of Spaces
- 42
- Max Short Circuit Current Rating
- 25 kA
- Maximum Number of Single Pole Circuits
- 42
- Maximum Number of Tandem Breakers
- 0
- Number of Phases
- 3 phase
- Voltage Rating
- 208Y/120 V AC;240/120 V delta AC;240 V delta AC
- Wire Size
- AWG 4...300 kcmil aluminium/copper
- Ground Bar
- Grounding bar (ordered separately)
- Electrical Connection
- Lugs
- Wiring Configuration
- 3-wire;4-wire
- Busbar Material
- Tin plated copper busbar
- Enclosure Material
- Welded sheet steel
- Surface Finish
- Baked enamel Gray
- Box Number
- 12
- Height
- 39.37 in (1000 mm)
- Width
- 14.25 in (362 mm)
- Enclosure Rating
- NEMA 1 indoor
- Ambient Air Temperature for Operation
- 23 °F (-5 °C);104 °F (40 °C)
- Product Certifications
- UL Listed
- Category
- 00011-QO 3PH LOAD CENTER;INDOOR
- Discount Schedule
- DE3
- GTIN
- 785901290575
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.00 in (12.7 cm)
- Package 1 Width
- 15.00 in (38.1 cm)
- Package 1 Length
- 40.50 in (102.87 cm)
- Package 1 Weight
- 26.61 lb(US) (12.07 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 27
- Package 2 Height
- 50.00 in (127.0 cm)
- Package 2 Width
- 40.50 in (102.87 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 759.00 lb(US) (344.276 kg)
- Warranty
- 18 months
