QO2L30S | LOAD Center QO MLO 240V 30A 1PH 2SP | Square D by Schneider Electric

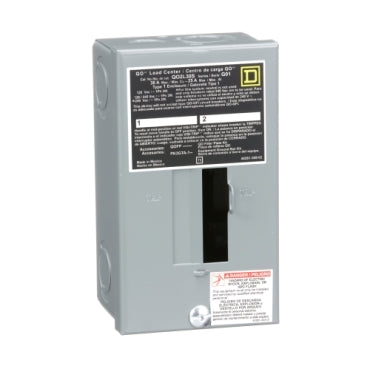

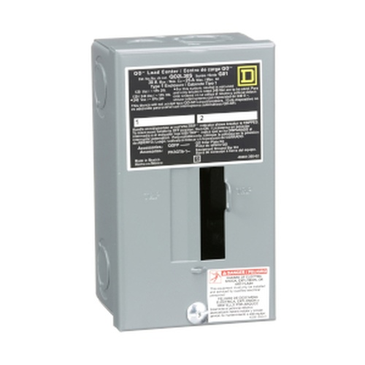

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO2L30S
Documents and manuals
Square D QO2L30S Documents
Overview
Details for QO2L30S
LOAD Center QO MLO 240V 30A 1PH 2SP
QO® Circuit Breaker Load Centers, QO2L30S, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 2 circuits. This system provides 30A fixed main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is UL rated.Specifications
- Marketing Trade Name
- QO
- Product Type
- Load Center
- Cover Type
- Surface cover
- Tightening Torque
- Main lugs 35 lb.in;AWG 14...AWG 10;aluminium/copper;Main lugs 35 lb.in;AWG 12...AWG10;aluminium/copper
- Load Center Type
- Main lugs
- Rated Current
- 30 A
- Number of Spaces
- 2
- Max Short Circuit Current Rating
- 10 kA
- Maximum Number of Single Pole Circuits
- 2
- Maximum Number of Tandem Breakers
- 0
- Number of Phases
- 1 phase
- Voltage Rating
- 120/240 V AC
- Wire Size
- AWG 14...AWG 10 copper;AWG 12...AWG10 aluminium
- Ground Bar
- Grounding bar (ordered separately)
- Electrical Connection
- Lugs
- Wiring Configuration
- 3-wire
- Busbar Material
- Tin plated aluminium busbar
- Enclosure Material
- Welded sheet steel
- Surface Finish
- Baked enamel Gray
- Box Number
- 1
- Height
- 6.73 in (171 mm)
- Width
- 3.82 in (97 mm)
- Enclosure Rating
- NEMA 1 indoor
- Ambient Air Temperature for Operation
- 23 °F (-5 °C);104 °F (40 °C)
- Product Certifications
- UL Listed
- Category
- 00101-QO 1PH LC;2-8CKT;NEMA 1;3R
- Discount Schedule
- DE3A
- GTIN
- 785901785071
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.21 in (10.7 cm)
- Package 1 Width
- 4.29 in (10.9 cm)
- Package 1 Length
- 7.80 in (19.8 cm)
- Package 1 Weight
- 33.28 oz (943.5 g)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 388
- Package 2 Height
- 40.00 in (101.6 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 819.74 lb(US) (371.826 kg)
- Warranty
- 18 months
