QO2100BNS | Load center enclosure, QO, 1 phase, 2 spaces, used with 100A breaker, NEMA1, surface cover, UL | Square D by Schneider Electric

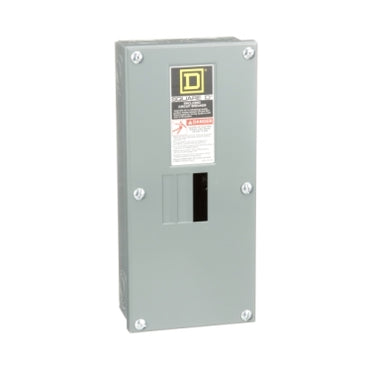

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO2100BNS
Documents and manuals
Square D QO2100BNS Documents
Overview
Details for QO2100BNS
Load center enclosure, QO, 1 phase, 2 spaces, used with 100A breaker, NEMA1, surface cover, UL
QO® Circuit Breaker Load Centers, QO2100BNS, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.Specifications
- Marketing Trade Name
- QO
- Product Type
- Enclosure
- Enclosure Type
- Enclosure
- Cover Type
- Surface cover
- Tightening Torque
- 35 lb.in;AWG 14...AWG 10;copper;35 lb.in;AWG 12...AWG10;aluminium;40 lb.in;AWG 8...AWG 4;aluminium/copper;50 lb.in;AWG 3...AWG 2;aluminium/copper;Main lugs 50 lb.in;AWG 3...AWG 1;aluminium/copper
- Rated Current
- 100 A
- Number of Spaces
- 2
- Max Short Circuit Current Rating
- 22 kA
- Maximum Number of Single Pole Circuits
- 2
- Maximum Number of Tandem Breakers
- 0
- Number of Phases
- 1 phase
- Wire Size
- AWG 14...AWG 1 copper;AWG 12...AWG 1 aluminium
- Ground Bar
- Grounding bar (ordered separately)
- Electrical Connection
- Lugs
- Wiring Configuration
- 3-wire
- Busbar Material
- Tin plated copper busbar
- Enclosure Material
- Welded sheet steel
- Surface Finish
- Baked enamel Gray
- Box Number
- 13
- Height
- 13.11 in (333 mm)
- Width
- 5.87 in (149 mm)
- Depth
- 3.4 in (86.36 mm)
- Enclosure Rating
- NEMA 1 indoor
- Product Certifications
- UL Listed
- Category
- 00005-QO;Q2L 2P ENCL & BREAKERS
- Discount Schedule
- DE2A
- GTIN
- 785901051732
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.61 in (11.7 cm)
- Package 1 Width
- 7.40 in (18.8 cm)
- Package 1 Length
- 15.00 in (38.1 cm)
- Package 1 Weight
- 5.67 lb(US) (2.57 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 135
- Package 2 Height
- 40.00 in (101.6 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 781.70 lb(US) (354.574 kg)
- Warranty
- 18 months
