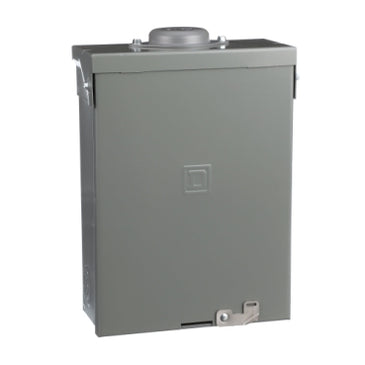

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QO612L100RB

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Square D QO612L100RB Documents

Datasheet More Info

Overview

Details for QO612L100RB

LOAD CENTER QO MLO 240V 100A 1PH 6SP

QO® Circuit Breaker Load Centers, QO612L100RB, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 6 spaces and 12 circuits. This system provides 100A fixed main lugs in a NEMA 3R enclosure. This product is UL rated.

Specifications

Marketing Trade Name: QO
Product Type: Load Center
Enclosure Type: Weatherproof enclosure
Cover Type: Surface cover
Tightening Torque: Main lugs 50 lb.in;AWG 8;aluminium/copper;Main lugs 50 lb.in;AWG 6...AWG 1/0;aluminium/copper
Load Center Type: Main lugs
Rated Current: 100 A
Number of Spaces: 6
Max Short Circuit Current Rating: 10 kA
Maximum Number of Single Pole Circuits: 12
Maximum Number of Tandem Breakers: 6
Number of Phases: 1 phase
Voltage Rating: 120/240 V AC
Wire Size: AWG 8...AWG 1 aluminium/copper
Ground Bar: Grounding bar (ordered separately)
Electrical Connection: Lugs
Wiring Configuration: 3-wire
Busbar Material: Tin plated aluminium busbar
Enclosure Material: Welded galvannealed steel
Surface Finish: Baked enamel Gray
Box Number: 2R
Height: 12.64 in (321 mm)
Width: 8.90 in (226 mm)
Enclosure Rating: NEMA 3R outdoor
Ambient Air Temperature for Operation: 23 °F (-5 °C);104 °F (40 °C)
Product Certifications: UL Listed
Category: 00101-QO 1PH LC;2-8CKT;NEMA 1;3R
Discount Schedule: DE3A
GTIN: 785901785590
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.90 in (12.446 cm)
Package 1 Width: 10.30 in (26.162 cm)
Package 1 Length: 14.20 in (36.068 cm)
Package 1 Weight: 9.65 lb(US) (4.377 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 80
Package 2 Height: 33.00 in (83.82 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 822.00 lb(US) (372.853 kg)
Warranty: 18 months
