QO330L200GRB | LOAD CENTER QO MLO 240V 200A | Square D by Schneider Electric

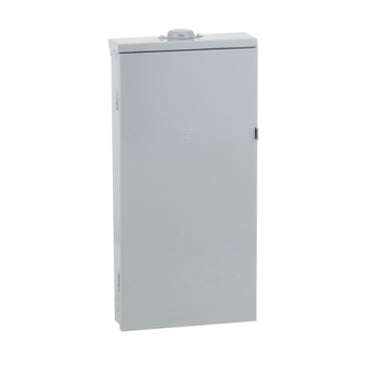

Square D | QO330L200GRB
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO330L200GRB

Documents and manuals

Square D QO330L200GRB Documents

Overview

Details for QO330L200GRB

LOAD CENTER QO MLO 240V 200A

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 30 spaces and 30 circuits. This system provides 200A fixed main lugs in a NEMA 3R enclosure. It also includes a ground bar, and is UL rated.

Specifications

Marketing Trade Name
QO
Product Type
Load Center
Enclosure Type
Weatherproof enclosure
Cover Type
Surface cover
Tightening Torque
Main lugs 250 lb.in;AWG 4...250 kcmil;aluminium/copper
Load Center Type
Main lugs
Rated Current
200 A
Number of Spaces
30
Max Short Circuit Current Rating
65 kA
Maximum Number of Single Pole Circuits
30
Maximum Number of Tandem Breakers
0
Number of Phases
3 phase
Voltage Rating
208Y/120 V AC;240/120 V delta AC;240 V delta AC
Wire Size
AWG 6...300 kcmil aluminium/copper
Ground Bar
Grounding bar included (not installed)
Electrical Connection
Lugs
Wiring Configuration
3-wire;4-wire
Busbar Material
Tin plated copper busbar
Enclosure Material
Welded galvannealed steel
Surface Finish
Baked enamel Gray
Box Number
6R
Height
29.84 in (758 mm)
Width
14.76 in (375 mm)
Enclosure Rating
NEMA 3R outdoor
Ambient Air Temperature for Operation
23 °F (-5 °C);104 °F (40 °C)
Product Certifications
UL Listed
Category
00017-QO 3PH LOAD CENTER;OUTDOOR
Discount Schedule
DE3
GTIN
785901295525
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
31.70 in (80.518 cm)
Package 1 Width
5.00 in (12.7 cm)
Package 1 Length
15.50 in (39.37 cm)
Package 1 Weight
32.50 lb(US) (14.742 kg)
Warranty
18 months
