QO2L40RB | LOAD CENTER QO MLO 240V 40A 1PH 2SP | Square D by Schneider Electric

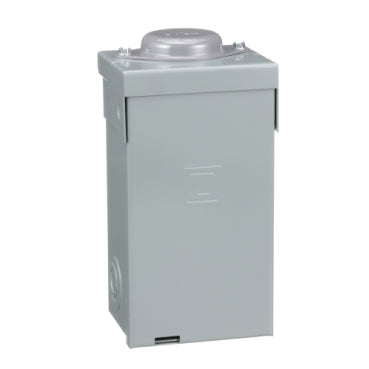

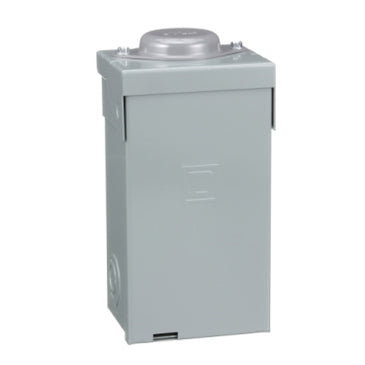

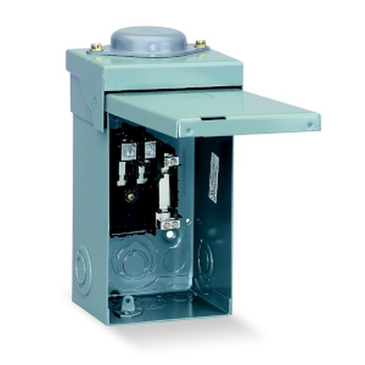

Square D | QO2L40RB
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO2L40RB

Documents and manuals

Square D QO2L40RB Documents

Overview

Details for QO2L40RB

LOAD CENTER QO MLO 240V 40A 1PH 2SP

LOAD Center QO
  • Line Rated Current : 40 A
  • Number of spaces :2
  • Short Circuit Current Rating : 65 kA
  • Maximum Number of Single Pole Circuits : 2
  • Maximum Number of Tandem Breakers : 0
  • Phase : 1 phase
  • System Voltage : 120/240 V AC
QO® Circuit Breaker Load Centers, QO2L40RB, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 2 circuits. This system provides 40A fixed main lugs in a NEMA 3R enclosure. This product is UL rated.

Specifications

Marketing Trade Name
QO
Product Type
Load Center
Enclosure Type
Weatherproof enclosure
Cover Type
Surface cover
Tightening Torque
Main lugs 35 lb.in;AWG 14...AWG 10;aluminium/copper;Main lugs 40 lb.in;AWG 8...AWG 4;aluminium/copper;Main lugs 35 lb.in;AWG 12...AWG10;aluminium/copper
Load Center Type
Main lugs
Rated Current
40 A
Number of Spaces
2
Max Short Circuit Current Rating
65 kA
Maximum Number of Single Pole Circuits
2
Maximum Number of Tandem Breakers
0
Number of Phases
1 phase
Voltage Rating
120/240 V AC
Wire Size
AWG 14...AWG 6 copper;AWG 12...AWG 6 aluminium
Ground Bar
Grounding bar (ordered separately)
Electrical Connection
Lugs
Wiring Configuration
3-wire
Busbar Material
Tin plated aluminium busbar
Enclosure Material
Welded galvannealed steel
Surface Finish
Baked enamel Gray
Box Number
1R
Height
9.37 in (238 mm)
Width
4.88 in (124 mm)
Enclosure Rating
NEMA 3R outdoor
Ambient Air Temperature for Operation
23 °F (-5 °C);104 °F (40 °C)
Product Certifications
UL Listed
Category
00101-QO 1PH LC;2-8CKT;NEMA 1;3R
Discount Schedule
DE3A
GTIN
785901785118
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.30 in (13.462 cm)
Package 1 Width
6.20 in (15.748 cm)
Package 1 Length
11.20 in (28.448 cm)
Package 1 Weight
5.16 lb(US) (2.34 kg)
Unit Type of Package 2
PAL
Number of Units in Package 2
213
Package 2 Height
40.00 in (101.6 cm)
Package 2 Width
40.00 in (101.6 cm)
Package 2 Length
48.00 in (121.92 cm)
Package 2 Weight
1098.83 lb(US) (498.42 kg)
Warranty
18 months
