QO132M100PCVP | QO LoadCenter, PoN, main breaker, 100 A, 1 PH, 32 SP, NEMA1, cover, value pack | Square D by Schneider Electric

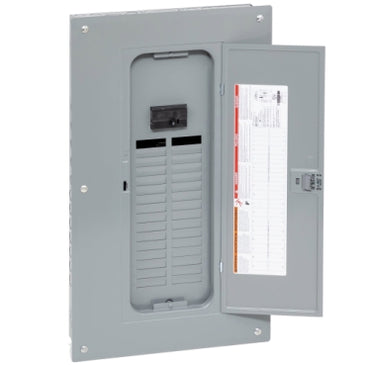

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO132M100PCVP
Overview
Details for QO132M100PCVP
QO LoadCenter, PoN, main breaker, 100 A, 1 PH, 32 SP, NEMA1, cover, value pack
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 32 spaces and 32 circuits. This system provides a 100A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral, combination cover, and is UL rated. This product is a value pack.Specifications
- Marketing Trade Name
- QO
- Product Type
- Load Center
- Cover Type
- Combination flush/surface cover
- Provided Equipment
- Cover
- Tightening Torque
- Cover 20 lb.in
- Load Center Type
- Main breaker
- Rated Current
- 100 A
- Number of Spaces
- 32
- Max Short Circuit Current Rating
- 22 kA
- Maximum Number of Single Pole Circuits
- 32
- Maximum Number of Tandem Breakers
- 6
- Number of Phases
- 1 phase
- Ground Bar
- Grounding bar (ordered separately)
- Box Number
- 8
- Height
- 26.02 in (661 mm)
- Width
- 14.25 in (362 mm)
- Depth
- 3.74 in (95 mm)
- Net Weight
- 24.65 lb(US) (11.180 kg)
- Enclosure Rating
- NEMA 1 indoor
- Ambient Air Temperature for Operation
- 23 °F (-5 °C);104 °F (40 °C)
- Product Certifications
- UL Listed
- Category
- 00184-MISC. QO 1PH LOAD CENTERS
- Discount Schedule
- DE3A
- GTIN
- 785901085904
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 26.02 in (66.1 cm)
- Package 1 Width
- 14.25 in (36.2 cm)
- Package 1 Length
- 3.74 in (9.5 cm)
- Package 1 Weight
- 27.81 lb(US) (12.614 kg)
