QO2100BNRB | ENCLOSURE QO CIRCUIT | Square D by Schneider Electric

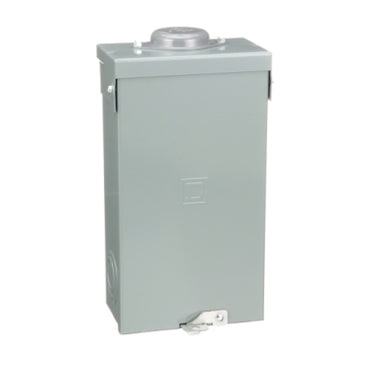

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QO2100BNRB

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Square D QO2100BNRB Documents

Datasheet More Info

Overview

Details for QO2100BNRB

ENCLOSURE QO CIRCUIT

QO® Circuit Breaker Load Centers, QO2100BNRB, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.

Specifications

Marketing Trade Name: QO
Product Type: Enclosure
Enclosure Type: Weatherproof enclosure
Tightening Torque: 35 lb.in;AWG 14...AWG 10;copper;35 lb.in;AWG 12...AWG10;aluminium;40 lb.in;AWG 8...AWG 4;aluminium/copper;50 lb.in;AWG 3...AWG 2;aluminium/copper;Main lugs 50 lb.in;AWG 3...AWG 1;aluminium/copper
Rated Current: 100 A
Number of Spaces: 2
Max Short Circuit Current Rating: 22 kA
Maximum Number of Single Pole Circuits: 2
Maximum Number of Tandem Breakers: 0
Number of Phases: 1 phase
Wire Size: AWG 14...AWG 1 copper
Ground Bar: Grounding bar (ordered separately)
Electrical Connection: Lugs
Wiring Configuration: 3-wire
Busbar Material: Tin plated copper busbar
Enclosure Material: Welded galvannealed steel
Surface Finish: Baked enamel Gray
Box Number: 10R
Height: 13.19 in (335 mm)
Width: 6.93 in (176 mm)
Depth: 4.12 in (104.65 mm)
Enclosure Rating: NEMA 3R outdoor
Product Certifications: UL Listed
Category: 00005-QO;Q2L 2P ENCL & BREAKERS
Discount Schedule: DE2A
GTIN: 785901051749
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Package 1 Length: 7.90 in (20.066 cm)
Number of Units in Package 1: 1
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Height: 41.00 in (104.14 cm)
Package 2 Weight: 907.00 lb(US) (411.408 kg)
Package 1 Width: 14.50 in (36.83 cm)
Package 1 Height: 5.00 in (12.7 cm)
Package 1 Weight: 8.05 lb(US) (3.651 kg)
Number of Units in Package 2: 105
Unit Type of Package 2: PAL
Package 2 Length: 48.00 in (121.92 cm)
Warranty: 18 months
