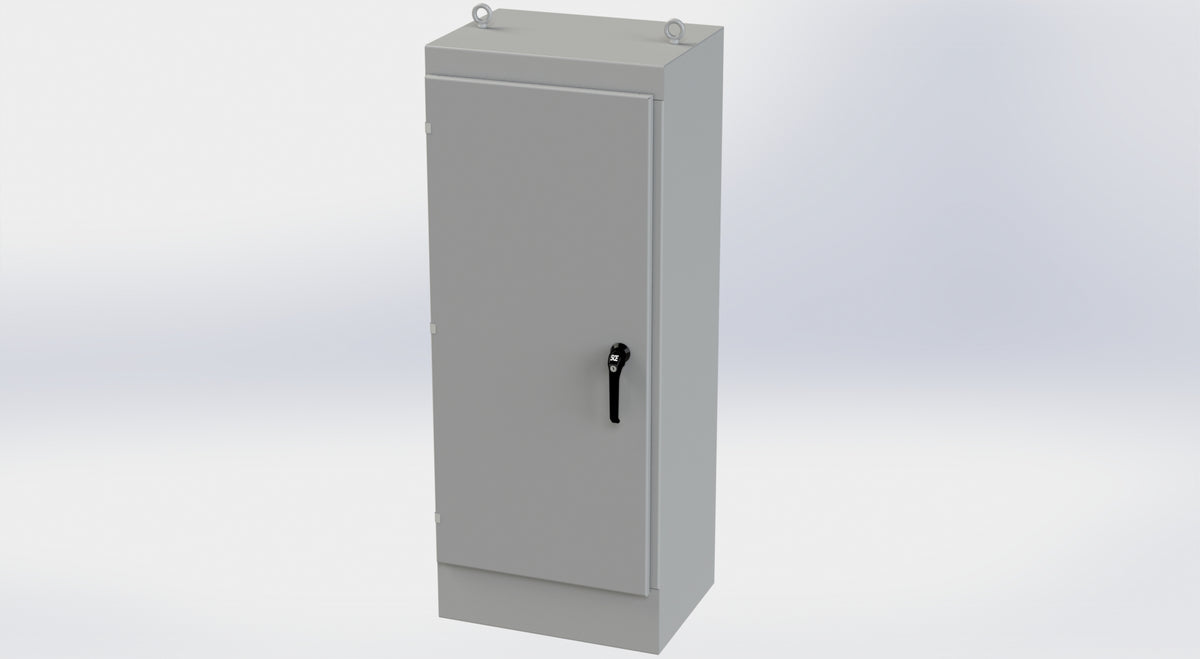

SCE-60EL2418FS | NEMA 3R, 12, 4 | EL FS Enclosure, 60H x 24W x 18D | Saginaw
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-60EL2418FS
Overview Details for SCE-60EL2418FS
Construction
- 0.104 In. carbon steel.
- Concealed hinges.
- Single-Door Single Access.
- Removable and interchangeable doors.
- Flange trough collar around all sides of door opening.
- Seams continuously welded and ground smooth.
- Lifting eyes for easy handling.
- Black zinc die cast keylocking/padlocking handle.
- 3-point latching mechanism.
- Latch rods have ramp shoes for easier door closing.
- Removable print pocket provided on door.
- Mounting channels welded horizontally on sides of interior body at top, bottom and middle for mounting optional panels or rack mounting angles.
- Pour in place oil and water resistant gasket.
- Ground stud on door and body.
- Provisions for light kits.
- Holes plugs provided to seal holes in bottom of enclosure.
Application
Designed to house a variety of electrical and electronic controls and instruments. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Provides protection from dust, dirt, water and oil. For outdoor application a drip shield and drain holes are required. The enclosures are extra deep for applications requiring more interior space.
For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Finish
ANSI-61 gray powder coat inside and out. Optional sub-panels are powder coated white.
Industry Standards - (IS4)
- NEMA Type 3R, 4, 12 and Type 13
- UL Listed Type 3R, 4 and 12
- CSA Type 3R, 4 and 12
- IEC 60529
- IP 66
Notes
Part numbers that contain the letter "EL" that are over 30 inches wide have additional latches on the center of the door top and bottom.
Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
Specifications
| Item Number | SCE-60EL2418FS |
| Brand | Saginaw |
| 1 Enclosure Rating | NEMA 12 |
| 1 Enclosure Rating | NEMA 3R |
| 1 Enclosure Rating | NEMA 4 |
| Enclosure Depth (IN) | 18 |
| Enclosure Height (IN) | 60 |
| Enclosure Type | EL FS Enclosure |
| Enclosure Width (IN) | 24 |
Reviews
Parts & Accessories for SCE-60EL2418FS
SCE-LF18NO | NEMA IS24 | Fixture, LED Light w/o Outlet, 3H x 18W x 4D | Saginaw$225.98
Brand: Saginaw
SKU: SCE-LF18NO
SCE-LF18 | NEMA IS24 | Fixture, LED Light, 3H x 18W x 4D | Saginaw$251.08
Brand: Saginaw
SKU: SCE-LF18
SCE-FS2424 | NEMA N/A | Shelf, Folding, 24H x 24W x 2D | Saginaw$258.36
Brand: Saginaw
SKU: SCE-FS2424
SCE-FS1818 | NEMA N/A | Shelf, Folding, 18H x 18W x 2D | Saginaw$214.83
Brand: Saginaw
SKU: SCE-FS1818
SCE-FS1212 | NEMA N/A | Shelf, Folding, 12H x 12W x 2D | Saginaw$171.28
Brand: Saginaw
SKU: SCE-FS1212
SCE-90RP24F6 | NEMA N/A | Angle, Rack, 40H x 2W x 2D | Saginaw$110.31
Brand: Saginaw
SKU: SCE-90RP24F6
SCE-90P24F2 | NEMA N/A | Subpanel, Half, 40H x 20W x 1D | Saginaw$160.49
Brand: Saginaw
SKU: SCE-90P24F2
SCE-72RP24F6 | NEMA N/A | Angle, Rack, 32H x 3W x 2D | Saginaw$89.99
Brand: Saginaw
SKU: SCE-72RP24F6
SCE-72P24F2 | NEMA N/A | Subpanel, Half, 31H x 20W x 1D | Saginaw$143.59
Brand: Saginaw
SKU: SCE-72P24F2
SCE-60SMP14 | NEMA N/A | Subpanel, Side Mount, 48H x 14W x 1D | Saginaw$157.29
Brand: Saginaw
SKU: SCE-60SMP14
SCE-60RP24F6 | NEMA N/A | Angle, Rack, 26H x 2W x 2D | Saginaw$72.58
Brand: Saginaw
SKU: SCE-60RP24F6
SCE-60RP24F5 | NEMA N/A | Angle, Rack, 49H x 2W x 2D | Saginaw$124.83
Brand: Saginaw
SKU: SCE-60RP24F5
SCE-60RA19TH | NEMA N/A | Angle, Rack, 49H x 2W x 2D | Saginaw$124.83
Brand: Saginaw
SKU: SCE-60RA19TH
SCE-60P24F2 | NEMA N/A | Subpanel, Half, 25H x 20W x 1D | Saginaw$132.34
Brand: Saginaw
SKU: SCE-60P24F2
SCE-60P24F1 | NEMA N/A | Subpanel, Full, 48H x 20W x 1D | Saginaw$197.09
Brand: Saginaw
SKU: SCE-60P24F1
SCE-60FSHDPS | NEMA N/A | Panel Support Heavy Duty, 57H x 2W x 2D | Saginaw$133.53
Brand: Saginaw
SKU: SCE-60FSHDPS
SCE-19ELJEXPP | NEMA 3R, 12, 4 | Pocket, Exterior Print, 19H x 13W x 2D | Saginaw$177.94
Brand: Saginaw
SKU: SCE-19ELJEXPP
SCE-13ELJEXPP | NEMA 3R, 12, 4 | Pocket, Exterior Print, 13H x 19W x 2D | Saginaw$177.94
Brand: Saginaw
SKU: SCE-13ELJEXPPRecently Viewed
Related Products

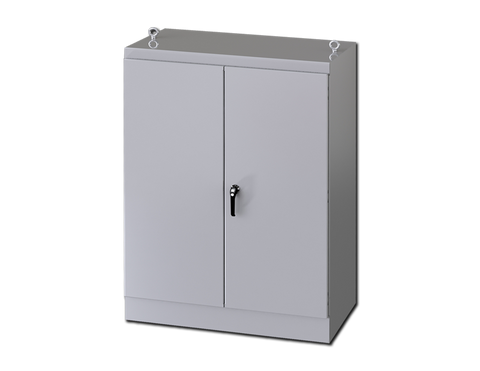

SCE-604818FSD | NEMA 3R, 12 | FSD Enclosure, 60H x 48W x 18D | Saginaw
