BGR-B30AM-CS | Meter | NG | MonDisp | MeterMount | Mod/RS485 | Veris

Meter | NG | MonDisp | MeterMount | Mod/RS485

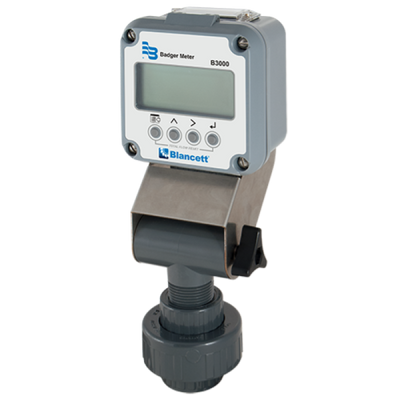

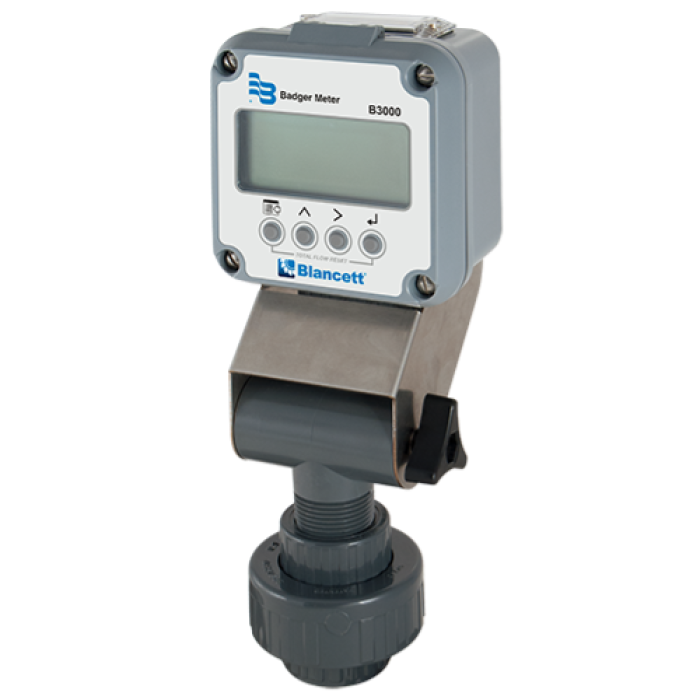

B30xx series flow monitors are offered for use with the B142 gas Quicksert gas flow meter. The B30xx series provides a flexible, durable, easy-to-use platform for flow metering applications.

• NEMA 4X (IP66) enclosure with meter mount
• Battery and 4 to 20 mA loop power options can be installed in remote locations and be up and running immediately
• Battery life up to 8 years maintain readings and settings during power loss
• All models feature pulse and 4 to 20 mA outputs, also feature Modbus RTU communication versatility
• Robust alarm parameters - faster warning when something in the system changes
• Auto switching between internal battery and external loop power, advanced output models include isolation between loop power and other I/O, battery: 3.6 VDC lithium D Cell gives up to 6 years of service life loop: 4 to 20 mA, 2-wire, 25 mA limit, non-polarity sensitive, 7 VDC loop loss
• Modbus RTU over RS-485, 127 addressable units/2-wire network, 9600 baud, long integer and single precision IEEE754 formats, retrieve: flow rate, job totalizer, grand totalizer, alarm status and battery level, write: reset job totalizer, reset grand totalizer
• Polycarbonate, stainless steel, polyurethane, thermoplastic elastomer, acrylic; NEMA 4X/ IP66
