H300 | Current Switch | Mico | Split-Core | Fixed | N.O | Veris

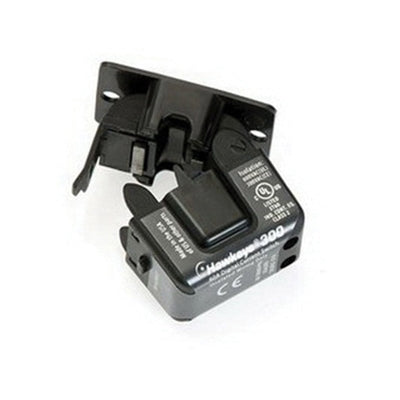

Hawkeye 0.15 to 60 A Fixed Trip Point Current Switch, Split-Core

Veris | H300
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H300

Documents and manuals


Details for H300

Current Switch | Mico | Split-Core | Fixed | N.O


Hawkeye x00 on/off current switches provide a cost-effective solution for monitoring status on unit vents, exhaust fans, recirculation pumps, and other fixed loads where belt loss is not a concern. Veris has applied new technology to the H300, H600, and H800 models to achieve impressive improvement in turn-on levels. The Hawkeye H300 and H600 have the lowest turn-on current in the industry at a mere 0.15 A!


  •  Monitoring status of electrical loads
  •  Monitoring direct-drive units, exhaust fans, process motors, and other fixed loads
  • Verifying lighting run times and lighting status
  •  VFD output On/Off status
  • Direct-Drive units, unit vents, fan coil units, exhaust fans, and other fixed loads


  • More reliable for status than relays across auxiliary contacts
  • Ideal for direct-drive units, unit vents, fan coil units, exhaust fans, and other fixed loads
  •  Low 0.15 A turn-on (H300 and H600)...ideal for small exhaust fans (not intended to detect belt loss)
  • Removable mounting bracket provides installation flexibility
  • Bracket on H900 can be installed in three different configurations...installer convenience
  • Split-core H300, H600, and H900 for fast retrofit installation
  • Mini solid-core H800 and micro split-core H300 fit in tight enclosures...saves valuable panel space
  • 100% solid-state, no moving parts to fail
  • Polarity insensitive output (except H800NC)
  • 5-year warranty


Item Number H300
Brand Veris
Application Building Automation Systems
Current Core Split Core
Current Measurement Range 0.15 - 60 A
Current Sensor type Current Switch; AC
Electrical Wiring Size 24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type AC Current
Model H300
Monitored Frequency Range 50 - 60 Hz
Monitored Wire Size 0.3" (8 mm)
Mounting Split Core
Operating Humidity 10 - 90% RH; non-condensing
Operating Temperature 5 - 140 °F (-15 - 60 °C)
Output Specifications N.O. 1 A @ 30 VAC/DC
Outputs Switch output
Product Certification UL | CE
Product Type Sensor
Range HX00 Series
Relay Coil Voltage None
Relay Contact Ratings None
Relay Poles/Throw None
Sensor Current Switch (Hawkeye)
Setpoint Fixed
Warranty 5 years
