E50B1 | DIN Energy Meter | VAR Pulse Out | Veris

Pulse Output Enhanced Power and Energy Meter

Brand: VerisSKU: E50B1

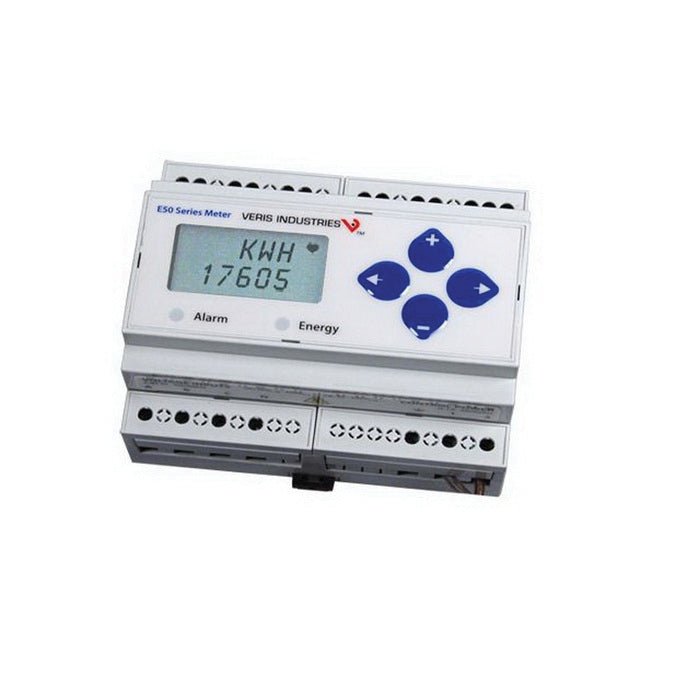

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to E50B1

Jump to: Overview & Specifications Reviews

Overview Details for E50B1

The E5x series DIN rail meter combines exceptional performance and easy installation to deliver a cost-effective solution for power monitoring applications. The E5x can be installed on standard DIN rail or surface mounted as needed. The Modbus, LON and BACnet output models offer added flexibility for system integration. Combinations of serial communication, pulse output and phase alarms are provided to suit a wide variety of applications. In this way, a facility administrator can track all energy data, ensuring accuracy in billing and crediting. They are also useful for monitoring loads that use regenerative braking.

High reliability
Easy installation
Multiple applications - real energy output and phase loss alarm output
Wide CT compatibility - compatible with CTs from 5 to 32000 A

Specifications

Item Number	E50B1
Brand	Veris
Accuracy	+/- 0.2%
Communication	Pulse kYZ
Dimensions	3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H
Display Type	LCD
Environmental Conditions	Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m
Frequency Rating	50 - 60 Hz
Metering Product Family	E50 Power Meter
Monitored Voltage Range	90 - 600 VAC
Mounting	Din-Rail
Operating Temperature	-22 - 158 °F
Output Specifications	Pulse: 30 VAC/VDC; 100 mA Maximum
Power Monitoring	E5x Series Power and Energy Meters
Product Type	Enhanced Power and Energy Meter
Range	E50
