H908 | Split Core | Adj | Calibration LEDs | Range:2.5-135AAC | Output: N.O | Veris

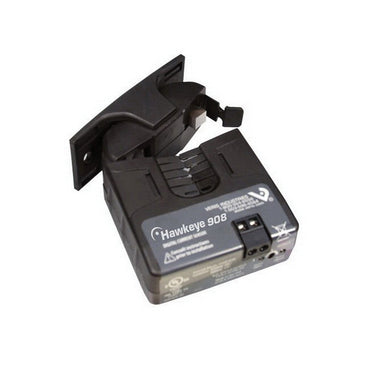

Hawkeye 2.5 to 135 A Adjustable Trip Point Standard Output Current Switch, Split-Core

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Reviews

Overview

Details for H908

Split Core | Adj | Calibration LEDs | Range:2.5-135AAC | Output: N.O

Description

Hx08 Series and H701 adjustable current switches offer high performance, with a wide array of amperage range options. These products can accurately detect belt loss, coupling shear, or other mechanical failure on unit vents, exhaust fans, recirculation pumps, and other fixed loads down to as little as 1/5 HP.

APPLICATIONS

Detecting belt loss, coupling shear, and mechanical failure
Verifying lighting circuit and other electrical service run times
Monitoring status of industrial process equipment
Monitoring status of critical motors (compressor, fuel, etc.)
VFD output On/Off status

Specifications

Item Number	H908
Brand	Veris
Application	Building Automation Systems
Current Core	Split Core
Current Measurement Range	2.5 - 135 A
Current Sensor type	Current Switch; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H908
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.8" (21 mm)
Mounting	Split Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	N.O. 1 A @ 30 VAC/DC
Outputs	Switch output
Product Certification	UL \| CE
Product Type	Sensor
Range	HX08 Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Switch (Hawkeye)
Setpoint	Adjustable
Warranty	5 years

Documents and manuals

Veris H908 Documents

CE Declaration Datasheet Engineering Specs Installation Guide More Info
