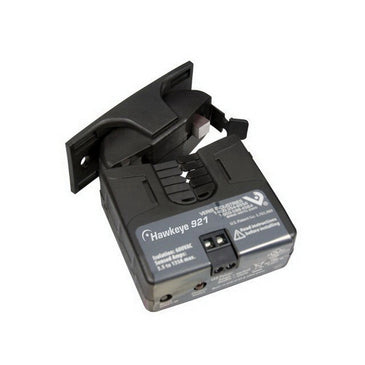

H921 | Current Transducer | Split-Core | 0-120A | 4-20mA | Veris

Hawkeye 0 to 30/60/120 A Input 4 to 20 mA DC Output Analog Current Transducer, Split-Core, 1.1 x 0.8 in

Brand: VerisSKU: H921

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H921

Suggested Alternatives

Senva Sensors C-2345 Analog 4-20mA, 30/60/120A, split core | Blackhawk Supply

C-2345 | Analog 4-20mA, 30/60/120A, split core | Senva Sensors

Brand: Senva Sensors

SKU: C-2345

$30.90

ACI A/SCTA2-50 Current Sensor (Split Core) | Loop Powered | 4-20 mA Average Output | Jumper Selectable Range: 0-10 | 0-20 | 0-50A | Blackhawk Supply

Brand: ACI

SKU: A/SCTA2-50

$73.24

Functional Devices RIBXG420-100 Enclosed Split-Core AC Sensor, 1-100Amp, 4-20ma, fixed, wire leads | Blackhawk Supply

RIBXG420-100 | Enclosed Split-Core AC Sensor, 1-100Amp, 4-20ma, fixed, wire leads | Functional Devices

Brand: Functional Devices

SKU: RIBXG420-100

$63.28

Jump to: Overview & Specifications Reviews

Overview Details for H921

The Hawkeye H921 provide accurate load trending information with a proportional 4 to 20 mA output signal. Preset slide switches provide easy field setup of sensed amperage range with no need for jumpers.

Power the sensor, and receive the signal with only 2-wires, lower cabling and commissioning costs than with traditional 3-wire sensors
Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
Factory calibrated switch-selectable ranges for high resolution and installation ease
Three field-selectable ranges per unit, fewer versions to choose from, stock, and install
Removable mounting bracket for installation flexibility
Added flexibility - bracket on H921 can be installed in three different configurations
100% solid-state no moving parts to fail
30 mA at 12 to 30 VDC sensor power

Specifications

Item Number	H921
Brand	Veris
Application	Building Automation Systems
Current Core	Split Core
Current Measurement Accuracy	±2% of F.S. above 10% of F.S.
Current Measurement Range	0 - 30 A \| 0 - 60 A \| 0 - 120 A
Current Sensor type	Current Transducer; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H921
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.8" (21 mm)
Mounting	Split Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	4 - 20 mA
Outputs	Analog output
Product Certification	UL \| CE
Product Type	Sensor
Range	HX21 Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Sensor (Hawkeye)
Warranty	5 years
