Documents: E50C2

Datasheet More Info

E50C2 | DIN Energy Meter | Modbus | Pulse Out | Veris

Alarm/Pulse/Modbus RTU Output Enhanced Power and Energy Meter

Brand: VerisSKU: E50C2

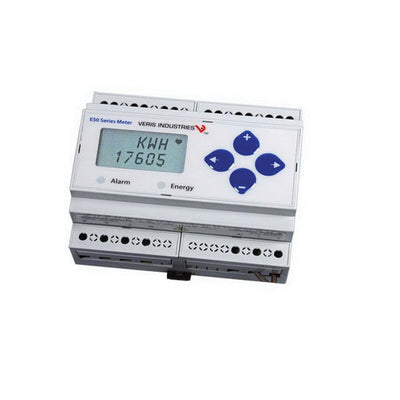

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to E50C2

Jump to: Overview & Specifications Reviews

Overview Details for E50C2

The E5x series DIN rail meter combines exceptional performance and easy installation to deliver a cost-effective solution for power monitoring applications. Combinations of serial communication, pulse output and phase alarms are provided to suit a wide variety of applications. In this way, a facility administrator can track all energy data, ensuring accuracy in billing and crediting. They are also useful for monitoring loads that use regenerative braking.

Modbus output model offer added flexibility for system integration
High reliability - ANSI C12.20 0.2% accuracy, IEC 62053-22 Class 0.2S
Easy installation - DIN rail or screw mounting options
Multiple applications - real energy output and phase loss alarm output
Wide CT compatibility - compatible with CTs from 5 to 32000 A

Specifications

Item Number	E50C2
Brand	Veris
Accuracy	+/- 0.2%
Communication	ModBus (RTU)
Dimensions	3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H
Display Type	LCD
Environmental Conditions	Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m
Frequency Rating	50 - 60 Hz
Metering Product Family	E50 Power Meter
Monitored Voltage Range	90 - 600 VAC
Mounting	Din-Rail
Operating Temperature	-22 - 158 °F
Output Specifications	30 VAC/VDC; 100 mA Maximum Alarm Output (NC) and Pulse Output (NO); RS-485 2-Wire Modbus RTU
Power Monitoring	E5x Series Power and Energy Meters
Product Type	Enhanced Power and Energy Meter
Range	E50
