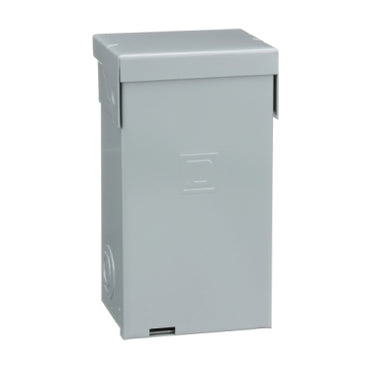

HOME250SPA | Load center, Homeline, 2 pole, 50 A enclosed main breaker, NEMA3R, ground fault interrupt | Square D by Schneider Electric

Load center, Homeline, 2 pole, 50 A enclosed main breaker, NEMA3R, ground fault interrupt

Load Center, Homeline, 2 pole, 50 A enclosed main breaker, NEMA3R, ground fault interrupt

• Line Rated Current : 50 A
• number of spaces : 2
• number of circuits : 4
• Enclosure Rating : NEMA 3R outdoor
• cover type : Surface cover
• Included Options : Circuit breaker 1) 2P 50 A 120/240 V AC ready assembled
• short-circuit current : 10 kA
• Number of Phases : 1 phase
• Rated operational voltage : 120/240 V AC
• Wire Size : AWG 8...AWG 6 aluminium/copper
• wiring configuration : 3-wire

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole GFCI circuit breaker that is rated at 50A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 2 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 6 AWG copper or aluminum wire. This Homeline load center has a height of 9.37 inches, a width of 4.88 inches, and depth of 4.01 inches. Homeline load centers are UL Listed and CSA certified.
