HOMT1520 | MINIATURE CIRCUIT BREAKER, 1P, 120/240V 20A | Square D by Schneider Electric

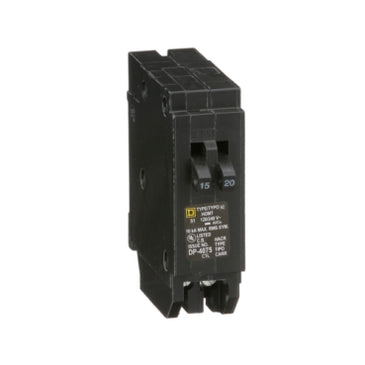

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOMT1520
Documents and manuals
Square D HOMT1520 Documents
Overview
Details for HOMT1520
MINIATURE CIRCUIT BREAKER, 1P, 120/240V 20A
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM plug in miniature tandem breaker with plug in mounting is rated 15A and 20A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.Specifications
- Product
- Miniature circuit-breaker
- Range
- Homeline
- Current Rating
- 20 A;15 A
- Certifications
- UL Listed
- Voltage Rating
- 120/240 V AC
- Mounting Type
- Plug-in
- Number of Poles
- 1P
- Short Circuit Current Rating
- 10 kA
- Number of Spaces
- 1
- Circuit Breaker Type
- Tandem
- Ratings
- HACR rated
- Electrical Connection
- Box lugs
- Wire Size
- AWG 12...AWG 8 aluminium)1
- tightening torque
- 35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8)
- Height
- 3.13 in (79.50 mm)
- Width
- 1 in (25.40 mm)
- Depth
- 2.98 in (75.69 mm)
- Ambient air temperature for operation
- 104 °F (40 °C)
- Category
- 00046-HOM/T 15-30A 1P; 15-60A 2P
- Discount Schedule
- DE3D
- GTIN
- 785901065418
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.00 in (2.54 cm)
- Package 1 Width
- 3.00 in (7.62 cm)
- Package 1 Length
- 3.20 in (8.128 cm)
- Package 1 Weight
- 6.88 oz (195.045 g)
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 100
- Package 2 Height
- 10.90 in (27.686 cm)
- Package 2 Width
- 7.80 in (19.812 cm)
- Package 2 Length
- 17.30 in (43.942 cm)
- Package 2 Weight
- 45.19 lb(US) (20.498 kg)
- Warranty
- Lifetime
