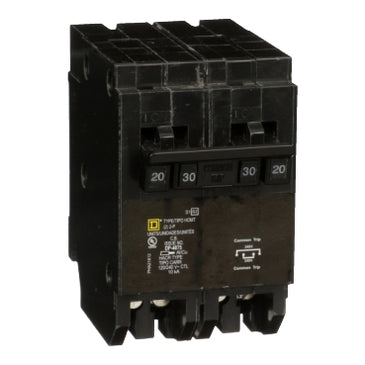

HOMT220230 | Quad tandem mini circuit breaker, Homeline, 1 x 2 pole at 20A, 1 x 2 pole at 30A, 120/240 V, 10 kA AIR, plug in mount | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOMT220230
Documents and manuals
Square D HOMT220230 Documents
Overview
Details for HOMT220230
Quad tandem mini circuit breaker, Homeline, 1 x 2 pole at 20A, 1 x 2 pole at 30A, 120/240 V, 10 kA AIR, plug in mount
Quad tandem mini circuit breaker- Product: Miniature circuit-breaker
- Range: Homeline
- Current Rating: 20A, 30A
- Certifications: UL listed
- Voltage Rating: 120/240 V AC
- Mounting Type: Plug-in
- Number of Poles: 2P
- Short Circuit Current Rating: 10 kA
- Number of Spaces: 2.0
- Circuit Breaker Type: Quad tandem
- Ratings: HACR rated
- Electrical Connection: Box lugs
- Wire Size: AWG 14...AWG 8 Aluminium / copper)1
- Height: 3.13 in (79.50 mm)
- Width: 1.97 in (50.04 mm)
- Depth: 3.23 in (82.04 mm)
Specifications
- Product
- Miniature circuit-breaker
- Range
- Homeline
- Current Rating
- 20 A;30 A
- Certifications
- UL Listed
- Voltage Rating
- 120/240 V AC
- Mounting Type
- Plug-in
- Number of Poles
- 2P
- Short Circuit Current Rating
- 10 kA
- Number of Spaces
- 2.0
- Circuit Breaker Type
- Quad tandem
- Ratings
- HACR rated
- Electrical Connection
- Box lugs
- Wire Size
- AWG 14...AWG 8 aluminium/copper)1
- tightening torque
- 35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8)
- Height
- 3.13 in (79.50 mm)
- Width
- 1.97 in (50.04 mm)
- Depth
- 3.23 in (82.04 mm)
- Ambient air temperature for operation
- 104 °F (40 °C)
- Category
- 00046-HOM/T 15-30A 1P; 15-60A 2P
- Discount Schedule
- DE3D
- GTIN
- 785901969754
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.15 in (8 cm)
- Package 1 Width
- 1.97 in (5 cm)
- Package 1 Length
- 3.23 in (8.2 cm)
- Package 1 Weight
- 16.00 oz (453.592 g)
