HOMT215250 | Quad tandem mini circuit breaker, Homeline, 1 x 2 pole at 15A, 1 x 2 pole at 50A, 120/240 VAC, 10 kA AIR, plug in mount | Square D by Schneider Electric

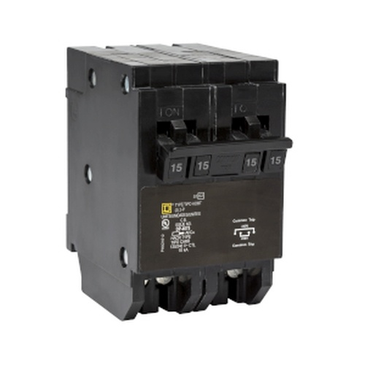

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOMT215250
Documents and manuals
Square D HOMT215250 Documents
Overview
Details for HOMT215250
Quad tandem mini circuit breaker, Homeline, 1 x 2 pole at 15A, 1 x 2 pole at 50A, 120/240 VAC, 10 kA AIR, plug in mount
Quad tandem mini circuit breaker- Product: Miniature circuit-breaker
- Range: Homeline
- Current Rating: 15 A, 50A
- Certifications: UL listed
- Voltage Rating: 120/240 V AC
- Mounting Type: Plug-in
- Number of Poles: 2P
- Short Circuit Current Rating: 10 kA
- Number of Spaces: 2.0
- Circuit Breaker Type: Quad tandem
- Ratings: HACR rated
- Electrical Connection: Box lugs
- Wire Size: AWG 14...AWG 8 Aluminium / copper)1
- Height: 3.13 in (79.50 mm)
- Width: 1.97 in (50.04 mm)
- Depth: 3.23 in (82.04 mm)
Specifications
- Product
- Miniature circuit-breaker
- Range
- Homeline
- Current Rating
- 15 A;50 A
- Certifications
- UL Listed
- Voltage Rating
- 120/240 V AC
- Mounting Type
- Plug-in
- Number of Poles
- 2P
- Short Circuit Current Rating
- 10 kA
- Number of Spaces
- 2.0
- Circuit Breaker Type
- Quad tandem
- Ratings
- HACR rated
- Electrical Connection
- Box lugs
- Wire Size
- AWG 14...AWG 8 aluminium/copper)1;AWG 14...AWG 6 aluminium/copper)1
- tightening torque
- 40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 14...AWG 6);40.71 lbf.in (4.6 N.m) 0.00…0.03 in² (2.5…20 mm²) (AWG 14...AWG 2)
- Height
- 3.13 in (79.50 mm)
- Width
- 1.97 in (50.04 mm)
- Depth
- 3.29 in (83.57 mm)
- Ambient air temperature for operation
- 104 °F (40 °C)
- Category
- 00046-HOM/T 15-30A 1P; 15-60A 2P
- Discount Schedule
- DE3D
- GTIN
- 785901039563
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.00 in (10.16 cm)
- Package 1 Width
- 14.00 in (35.56 cm)
- Package 1 Length
- 26.00 in (66.04 cm)
- Package 1 Weight
- 16.00 oz (453.592 g)
