Details for HOMT2020230

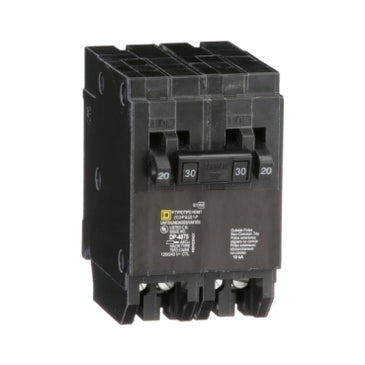

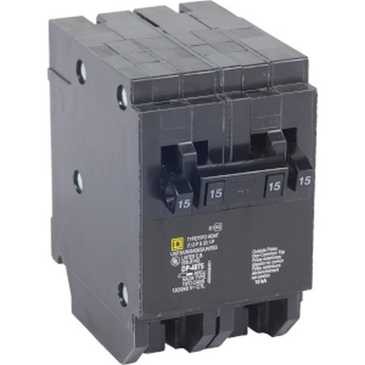

MINIATURE CIRCUIT BREAKER 120/240V 20A

MINIATURE CIRCUIT BREAKER

Line Rated Current : 30 A, 20 A
System Voltage : 120/240 V AC
Number of Poles : 2P , 1P

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This HOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 30A at 120/240 VAC and the single pole breakers are rated 20A and 20A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.

Specifications

Product: Miniature circuit-breaker
Range: Homeline
Current Rating: 30 A;20 A
Certifications: UL Listed
Voltage Rating: 120/240 V AC
Mounting Type: Plug-in
Number of Poles: 1P;2P
Short Circuit Current Rating: 10 kA
Number of Spaces: 2
Circuit Breaker Type: Quad tandem
Ratings: HACR rated
Electrical Connection: Box lugs
Wire Size: AWG 14...AWG 8 aluminium/copper)1
tightening torque: 35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8)
Height: 3.13 in (79.50 mm)
Width: 2 in (50.80 mm)
Depth: 2.98 in (75.69 mm)
Ambient air temperature for operation: 104 °F (40 °C)
Category: 00046-HOM/T 15-30A 1P; 15-60A 2P
Discount Schedule: DE3D
GTIN: 785901101031
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.00 in (7.62 cm)
Package 1 Width: 2.00 in (5.08 cm)
Package 1 Length: 3.30 in (8.382 cm)
Package 1 Weight: 13.60 oz (385.554 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 5
Package 2 Height: 3.30 in (8.382 cm)
Package 2 Width: 2.00 in (5.08 cm)
Package 2 Length: 10.20 in (25.908 cm)
Package 2 Weight: 4.44 lb(US) (2.014 kg)
Unit Type of Package 3: CAR
Number of Units in Package 3: 50
Package 3 Height: 10.90 in (27.686 cm)
Package 3 Width: 7.90 in (20.066 cm)
Package 3 Length: 17.40 in (44.196 cm)
Package 3 Weight: 45.80 lb(US) (20.775 kg)
Warranty: Lifetime
