HOM2448L125PQGC | Load center, Homeline, 1 phase, 24 spaces, 48 circuits, 125A convertible main lugs, PoN, NEMA1, Qwik-grip, grnd bar | Square D by Schneider Electric

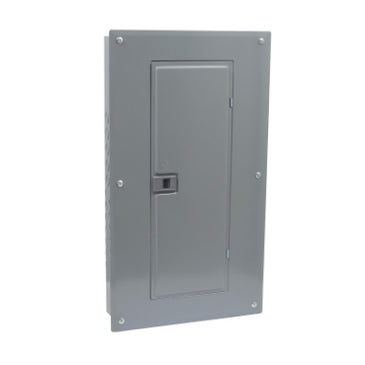

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOM2448L125PQGC
Documents and manuals
Square D HOM2448L125PQGC Documents
Overview
Details for HOM2448L125PQGC
Load center, Homeline, 1 phase, 24 spaces, 48 circuits, 125A convertible main lugs, PoN, NEMA1, Qwik-grip, grnd bar
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 24 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or 6 AWG to 2/0 AWG aluminum wire. Load center has a grounding bar. The Homeline load center comes with a Qwik grip assembly kit. This Homeline load center has a height of 26.02 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.Specifications
- Product Type
- Load Center
- Marketing Trade Name
- Homeline
- Load Center Type
- Main lugs
- Rated Current
- 125 A
- Number of Spaces
- 24
- Maximum Number of Single Pole Circuits
- 48
- Enclosure Rating
- NEMA 1 indoor
- Cover Type
- Combination flush/surface cover
- Electrical Connection
- Lugs
- Provided Equipment
- Grounding bar 1);Qwik grip assembly kit 1)
- Max Short Circuit Current Rating
- 10 kA
- Maximum Number of Tandem Breakers
- 24
- Number of Phases
- 1 phase
- Voltage Rating
- 120/240 V AC
- Wire Size
- AWG 6...AWG 2/0 aluminium;AWG 6...AWG 1 copper
- Ground Bar
- Grounding bar included (not installed)
- Wiring Configuration
- 3-wire
- Enclosure Material
- Welded galvannealed steel
- Surface Finish
- Baked enamel Gray
- Box Number
- 8Q
- Height
- 26.02 in (661 mm)
- Depth
- 3.74 in (95 mm)
- Width
- 14.25 in (362 mm)
- Ambient Air Temperature for Operation
- 23 °F (-5 °C);104 °F (40 °C)
- Category
- 00045-HOM LC&CVR;12-42 CKT;NEMA1
- Discount Schedule
- DE3C
- GTIN
- 785901593553
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 26.02 in (66.1 cm)
- Package 1 Width
- 14.25 in (36.2 cm)
- Package 1 Length
- 3.74 in (9.5 cm)
- Package 1 Weight
- 24.41 lb(US) (11.072 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 18
- Package 2 Height
- 39.50 in (100.33 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 469.00 lb(US) (212.735 kg)
