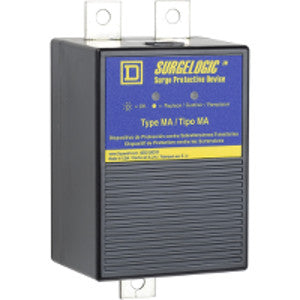

MA4IMA24 | Surge Protection Module, IMA, 240kA, 480Y/277V AC, 3-Phase, 4-Wire, NEMA 2 | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MA4IMA24

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D MA4IMA24 Documents

Datasheet More Info

Overview

Details for MA4IMA24

Surge Protection Module, IMA, 240kA, 480Y/277V AC, 3-Phase, 4-Wire, NEMA 2

Surge Protection Module

IMA
Surge Current: 240kA
System Voltage: 480Y/277V AC
Number of Phases: 3-Phase
Wiring Configuration: 4-Wire
Connections -Terminals: Terminals
Local Signaling: Status LED, green = normal operation
Mounting Support: Panel Mounting
Degree of Protection: NEMA 2

Surgelogic™ EMA and EBA series SPDs, MA4IMA24, offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems.

Specifications

Product: Surge protection module
Range: Surgelogic
Device Short Name: IMA
Accessory Category: Replacement part
Surge Current: 240 kA per phase
Voltage Rating: 480Y/277 V AC
Number of Phases: 3 phase
Wiring Configuration: 4-wire
Connection: Terminals
MCOV: 320 V
Nominal Discharge Current: 20 kA
SCCR: 200 kA
Local Signalling: Status LED green normal operation
Provided Equipment: Alarm enable/disable switch
Mounting Support: Panel mounting
Height: 6.25 in (158.8 mm)
Width: 3.26 in (82.8 mm)
Depth: 2.69 in (68.3 mm)
Enclosure Rating: NEMA 2
Enclosure Material: Black Plastic
Standards: UL 1449:ed. 4;UL 1283:ed. 5;CSA C22.2 No 8:1986;ANSI/IEEE C62.41;ANSI/IEEE C62.45;NEC 285
Ambient Operating: 149 °F (65 °C)
Category: 08467-SURGE PROTECTION REPLACEMENT
Discount Schedule: DE1B
GTIN: 785901292999
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.60 in (11.684 cm)
Package 1 Width: 5.40 in (13.716 cm)
Package 1 Length: 8.40 in (21.336 cm)
Package 1 Weight: 32.80 oz (929.864 g)
Warranty: 18 months
