PX3ULX05 | Pressure | Dry | Univ | LCD | Veris

Bluetooth Universal Enclosure Dry Media Differential Pressure/Air Velocity Transducer with LCD Display, 0 to 10 in-WG

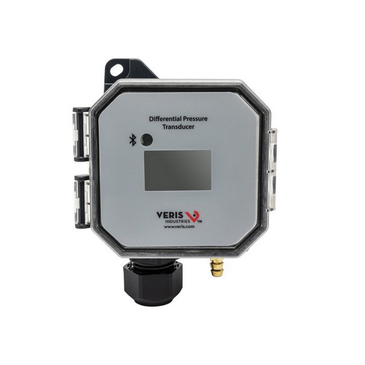

Veris | PX3ULX05
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PX3ULX05

Documents and manuals

Overview

Details for PX3ULX05

Pressure | Dry | Univ | LCD

Description

The PX3 transducer can measure either air pressure or velocity with the flip of a switch. The PX3 is available in three installation configurations: duct, panel or universal. Duct and panel models have two pressure and velocity options: 0-1 in. WC / 0-3,000 ft/min or 1-10 in. WC / 3,000-6,000 ft/min with four field-selectable subranges. The universal model comes in one pressure/velocity range: 0-10 in. WC / 0-7,000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. All variants are available with and without display. The PX3 has an IP65/NEMA 4 environmental rating and a 5-year limited warranty.

Features

  • Reduce field failures Excellent tolerance to overpressure & vibration reduces field failures
  • Reduce setup Selectable ranges and scales reduce setup time and number of models to stock
  • High accuracy High accuracy digital sensor with seven selectable pressure and eight velocity sub-ranges, maintains calibration and reduces callbacks
  • Water-resistant housing IP65/NEMA 4 housing allows for mounting in wash-down locations
  • Maintenance free High reliability sensor technology for long-term, maintenance-free operation
  • Circuit protection Circuit protection avoids damage due to incorrect input wiring

APPLICATIONS

  • Duct static pressure (Pressure mode)
  • Building or room pressure (Pressure mode)
  • Filter status (Pressure mode)
  • Air flow measurement (Velocity mode)

Specifications

Item Number PX3ULX05
Brand Veris
Application Zone Plant Room
Application Duct Pressure Monitoring | Filter Monitoring | Fan Monitoring | VAV Control | Air Velocity Monitoring
Brand Veris
Burst Pressure 5 psid (34 500 Pa)
Calibration Certificate No
Dimension Depth 1.6" (42 mm)
Dimension Height 4.4" (112 mm)
Dimension Probe Diameter 0.3" (7 mm)
Dimension Probe Length 7.4" (188 mm)
Dimension Weight 4.4 oz (125 g)
Dimension Width 3.5" (88 mm)
Display Precision 0.001
Display Size 0.7" x 1.1" (17 mm x 28 mm)
Display Type LCD
Electrical Wiring Size AWG 22 (35 mm²)
Electrical Wiring 3-wires
Enclosure Material ABS Plastic
Fitting Material Brass
Fitting Size 0.24" (6 mm)
Fitting Type Male
IP Protection IP65 (NEMA 4)
LED Indicator Type RGB
Measurement Type Differential Pressure
Medium Air | Gas
Model PX3ULX05
Mounting Duct | Panel
Operating Temperature -4 - 140 °F (-20 - 60 °C)
Output Specifications 4 - 20 mA | 0 - 5 V | 0 - 10 V
Outputs Analog output
Pressure Measurement Accuracy ±1% of F.S.
Pressure Measurement Range 0.1"WC (25 Pa) | 0.25"WC (50 Pa) | 0.5"WC (100 Pa) | 1"WC (250 Pa) | 2.5"WC (500 Pa) | 5"WC (1000 Pa) | 10"WC (2500 Pa)
Product Certification CE
Product Type Sensor
Range PX3
Standards EMC EN 61000-6-3 | Class B | EN 61000-6-1 | EN61326-1 | EN61326-2-3
Supply Voltage AC Nominal 24 VAC
Supply Voltage DC Range 12 - 30 VDC
Warranty 5 years
