SE8650U0B11 | Roof Top Unit, Heat Pump & Indoor Air Quality Ctrl: BACnet MS/TP, RH sensor & control, White Case/Fascia | Schneider Electric

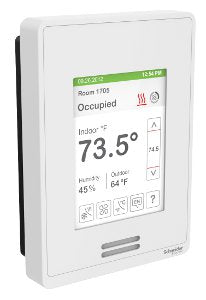

The Schneider Electric SE8650U0B11 is a sophisticated room thermostat designed for precise temperature and humidity control in various HVAC applications, including rooftop units (RTUs), heat pumps, and indoor air quality (IAQ) systems. Its user-friendly interface and advanced features streamline HVAC management, enhancing energy efficiency and occupant comfort.

Key Features and Benefits:

• Precise Temperature & Humidity Control: Maintain optimal comfort levels with highly accurate temperature and humidity sensing. The humidity sensor boasts +/- 10% accuracy at 10-20% and 80-90% non-condensing humidity. The setpoint range is a versatile 40°F to 100°F.
• BACnet MS/TP & Modbus RTU Compatibility: Seamless integration with building automation systems (BAS) for centralized control and monitoring. Note: Zigbee Pro communication requires a separate VCM8000V5045P module.
• Intuitive Touchscreen Interface: Easily configure settings, monitor conditions, and manage functions via the intuitive touchscreen LCD display. The display shows temperature in °F (40-122°F) and allows for custom screen colors and logo display.
• Compact & Easy Installation: Its sleek design (4.72" H x 3.38" W x 1" D) and lightweight construction (11.99 oz/340g) make installation straightforward.
• Advanced Functionality: Includes features such as fan control, code lock, and firmware updates via USB. Supports multiple input types (analog, dry contact) for flexible integration.
• Wide Range of Applications: Suitable for diverse environments, including commercial buildings, healthcare facilities, hotels, offices, residential properties, schools, and small commercial spaces.
• Safety & Compliance: Meets stringent safety and regulatory standards, complying with 2014/30/EU (EMC), 2014/35/EU (Low Voltage), and 2014/53/EU (Radio Equipment) directives. It is also California Proposition 65 compliant.

Specifications:

• Brand: Schneider Electric
• SKU: SE8650U0B11
• Voltage: 24 VAC 50/60 Hz +/- 15% or 24 VDC
• Power Consumption: Up to 6 VA, 94 VA max output load
• Communication Protocols: BACnet MS/TP, Modbus RTU (Zigbee Pro requires separate module)
• Humidity Sensor: Yes, with accuracy as specified above.
• Display: Touchscreen LCD
• Dimensions: 4.72" H x 3.38" W x 1" D
• Weight: 11.99 oz (340 g)
