006920640 | SLO Series outdoor light transmitter, SLO320, selectable outputs, 0-20,000 Lux | Schneider Electric

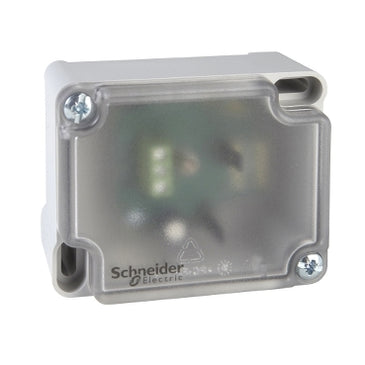

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 006920640

SLO Series outdoor light transmitter, SLO320, selectable outputs, 0-20,000 Lux

Range of Product: SLO300
Product or Component Type: Sensor
analogue output type: 4...20 mA;0...10 V
former part number: 6920640
Material: PA (polyamide) housing
rated voltage: 15…36 V DC;24 V +/- 10 % AC
number of cables: 2
Net Weight: 0.22 lb(US) (0.1 kg)
Width: 3.35 in (85 mm)
Height: 2.56 in (65 mm)
luminous flux: 0…20000 lm
Device Application: Outdoor Reference
Light Intensity Measurement Accuracy: +/- 5 %
Location: Outdoor
Range Compatibility: Andover Continuum;DMS;Drayton;Network 8000;Satchwell;TAC I/A series;TAC I/NET;TAC Vista
Sensor Signal Category: Analog
With Override: No
Calibration Certificate: Humidity: None
targeted region: Europe;Asia Pacific.
IP Degree of Protection: IP65
Standards: EN 50081-1;EN 50082-1
Ambient air temperature for operation: -4…158 °F (-20…70 °C)
GTIN: 7332552011702
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.56 in (6.5 cm)
Package 1 Width: 3.78 in (9.6 cm)
Package 1 Length: 4.49 in (11.4 cm)
Package 1 Weight: 5.26 oz (149.0 g)
Warranty: 24 months
