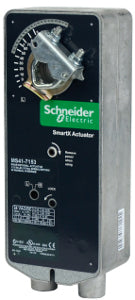

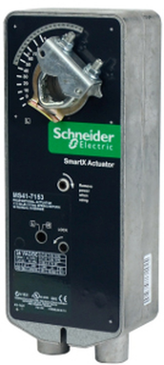

MS41-7153 | Damper Actuator | 133 in-lb | Spg Rtn | 24V | Modulating | Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MS41-7153

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric MS41-7153 Documents

Datasheet More Info

Overview

Details for MS41-7153

Damper Actuator | 133 in-lb | Spg Rtn | 24V | Modulating

Actuator: (MS41-7153):

Actuator Type: Electric
Control Signal: Proportional
Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
Loss of Power Type: Spring Return
Power Input Voltage: 22 to 30 VDC, 24 VAC/VDC
Leads and Connections: 3 ft Appliance
Torque: 133 in-lb
Mechanical Movement: Rotary
Protection Rating: NEMA 1, NEMA 2
Product Line: Schneider Electric
Product Range: SmartX Actuator
Product Series: Mx4x-7xxx
Actuator Use: Butterfly Valves, Dampers, Globe Valves

Product Alert: Linkage required for Globe Valve Assembly use. NEMA 2 with conduit connector in the down position. Designed for controlling air dampers in building systems that require fail safe return, with two position, floating or proportional control.
