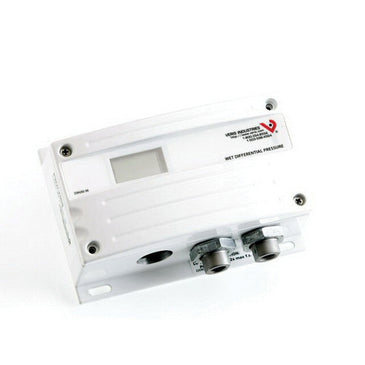

PWLX04S | Pressure | Wet | NEMA 4 | LCD | 0-100PSID | Veris

12 to 30 VDC/24 VAC Input 4 to 20 mA/0 to 5 V/0 to 10 V Output Wet Media Differential Pressure Transducer with LCD Display, 0 to 100 psig

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PWLX04S

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris PWLX04S Documents

CE Declaration Datasheet Installation Guide More Info

Overview

Details for PWLX04S

Pressure | Wet | NEMA 4 | LCD | 0-100PSID

DESCRIPTION

The PW Series wet pressure transducers incorporate microprocessor profiled sensors for exceptional accuracy and reliability. Easy to use and designed to provide exceptional installation savings, the PW Series is ideal for measuring pressure across pumps, filters, heat exchangers, compressors, and other non-corrosive wet media applications.

FEATURES

The jumper-selectable output switch for normal (4-20mA) or reverse (20-4mA) operation provides application flexibility
Rugged, die-cast enclosure provides NEMA 4 sealing
Jumper-selectable port swap feature eliminates costly replumbing when the high and low ports are improperly plumbed... change the jumper position from normal to swap – problem solved!
Switch-selectable pressure ranges...fewer models to order and stock
Pushbutton and remote zero adjustment...maintain accuracy and reduce callbacks with automatic zero calibration
Jumper-controlled electronic surge dampening for high stability
Pushbutton zero calibration – no trim pots to adjust

Specifications

Item Number	PWLX04S
Brand	Veris
Application Zone	Plant Room
Application	Pump and Compressor Differential Pressure \| Chiller Differential Pressure Monitoring
Brand	Veris
Burst Pressure	500 psi (34 bar)
Calibration Certificate	No
Dimension Depth	2.2" (56 mm)
Dimension Height	4" (102 mm)
Dimension Width	5.8" (147 mm)
Direction	Unidirectional
Display Size	0.7" x 1.4" (17 mm x 36 mm)
Display Type	LCD
Electrical Wiring	3-wires
Enclosure Material	Powder Coated Aluminium
Fitting Material	Stainless Steel
Fitting Size	1/ 8” NPT
Fitting Type	Female
IP Protection	IP65 (NEMA 4)
LED Indicator Type	Red and Green
Measurement Type	Differential Pressure
Medium	Water
Model	PWLX04S
Mounting	Panel
Operating Current	125 - 280 mA
Operating Humidity	0 - 90% RH; non-condensing
Operating Temperature	14 - 122 °F (-10 - 50 °C)
Output Specifications	4 - 20 mA \| 0 - 5 V \| 0 - 10 V
Outputs	Analog output
Pressure Measurement Accuracy	Range A and B: ±1% of F.S. Range C: ±1.5% of F.S. Range D: ±2% of F.S.
Pressure Measurement Range	0 - 10 psi (0 - 0.7 bar) \| 0 - 20 psi (0 - 1.4 bar) \| 0 - 50 psi (0 - 3.5 bar) \| 0 - 100 psi (0 - 7 bar)
Pressure Range	0-100 psid
Pressure Sensor Type	Differential (wet to wet)
Pressure Sensor w LCD	Yes
Product Certification	CE
Product Type	Sensor
Range	PW
Sensor	Pressure
Standards EMC	EN 61000-6-1
Supply Voltage AC Nominal	24 VAC
Supply Voltage DC Range	15 - 30 VDC
Warranty	5 years
